3/8 Tube x 3/8 NPT 90 Degree Male

Boss recommends using a liquid thread sealant rather than thread tape. Small fragments of thread tape can break off, travel through the airlines and lodge in valves or valve blocks, causing them to stick open or closed. A quality thread sealant seals the threads without shedding debris.

Always cut the airline square with a sharp tube cutter, not side cutters. Push the tube firmly into the fitting until it bottoms out, then pull back gently to seat the collet. Most leaks are caused by angled cuts, scratched tube, or the line not being fully inserted.

You can often reuse fittings and lines if they are in good condition, but if the tube end is scratched, oval or has been repeatedly removed, it is safer to cut back to a fresh section or replace it. Damaged tube ends are a common source of slow leaks.

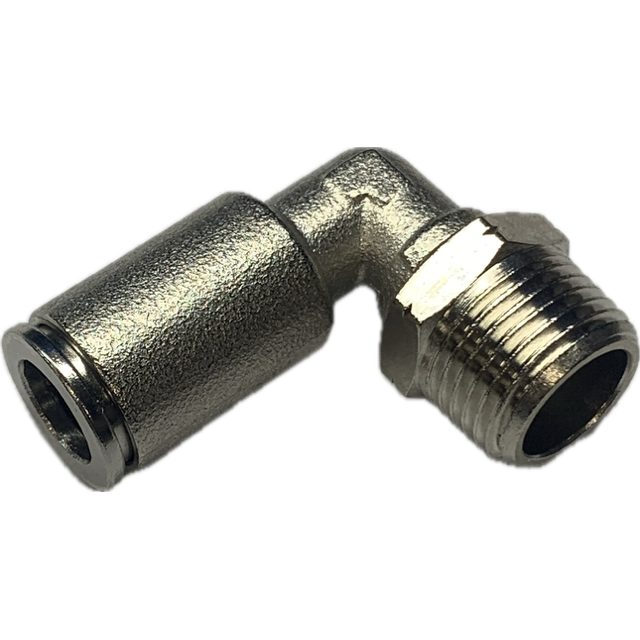

The FIT-PL-3/8-N3UT is a 90-degree push-fit fitting designed to connect 3/8" push-fit air lines to a 3/8" NPT thread. It allows for efficient and secure connections in air suspension systems.

A 90-degree fitting allows for tighter bends and more compact installations, which is particularly useful in confined spaces. It helps maintain a clean and efficient layout in your air suspension setup.

Yes, the FIT-PL-3/8-N3UT fitting is designed to withstand typical pressures found in air suspension systems. However, always ensure that the entire system is rated for the intended pressure to avoid failures.

To install the FIT-PL-3/8-N3UT fitting, simply push the 3/8" air line into the fitting until it is fully seated. Then, thread the NPT end into the desired port, ensuring a secure connection. Use a thread sealant for added security.

When using the FIT-PL-3/8-N3UT fitting, consider the orientation of the fitting to ensure proper airflow and avoid kinks in the air line. Additionally, ensure that all connections are tight and leak-free for optimal performance.
