1/4 Tube x 1/8 NPT Male Fitting

Boss recommends using a liquid thread sealant rather than thread tape. Small fragments of thread tape can break off, travel through the airlines and lodge in valves or valve blocks, causing them to stick open or closed. A quality thread sealant seals the threads without shedding debris.

Always cut the airline square with a sharp tube cutter, not side cutters. Push the tube firmly into the fitting until it bottoms out, then pull back gently to seat the collet. Most leaks are caused by angled cuts, scratched tube, or the line not being fully inserted.

You can often reuse fittings and lines if they are in good condition, but if the tube end is scratched, oval or has been repeatedly removed, it is safer to cut back to a fresh section or replace it. Damaged tube ends are a common source of slow leaks.

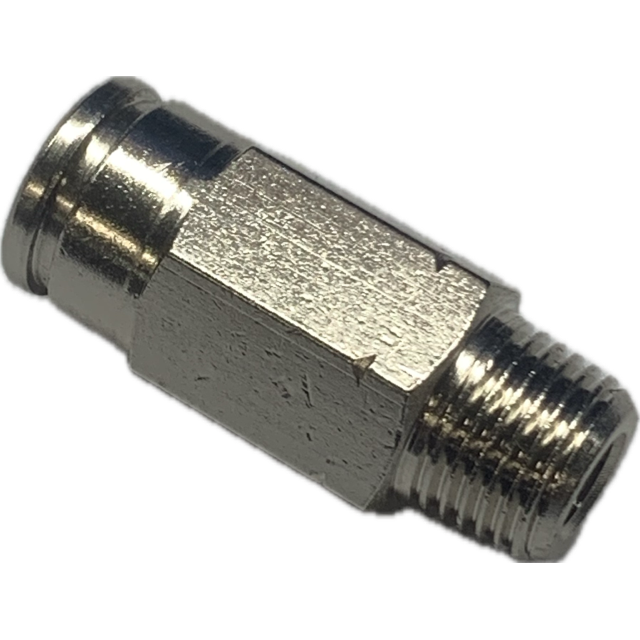

The FIT-PC1/4-N1UT fitting is designed to connect a 1/4" airline to a 1/8" NPT male thread. This allows for easy integration into air suspension systems, ensuring a secure and leak-free connection.

While the FIT-PC1/4-N1UT fitting is versatile, it is primarily designed for use with Boss Air Suspension systems. Always check compatibility with your specific setup to ensure optimal performance.

The FIT-PC1/4-N1UT fitting is constructed from high-quality materials to ensure durability and resistance to corrosion. This is crucial for maintaining a reliable air suspension system over time.

Yes, the FIT-PC1/4-N1UT fitting can be used in various pneumatic applications where a 1/4" airline needs to connect to a 1/8" NPT male thread. However, it is optimally suited for air suspension systems.

The FIT-PC1/4-N1UT fitting is designed to handle standard pressures typically found in air suspension systems. Always refer to the specific product documentation for detailed pressure ratings and ensure that your system operates within these limits.

To install the FIT-PC1/4-N1UT fitting, ensure that the 1/4" airline is cut squarely and fully inserted into the push fitting. Then, screw the 1/8" NPT male thread into the desired port, ensuring a secure connection without over-tightening.

It is recommended to use a liquid thread sealant on the threads of the FIT-PC1/4-N1UT fitting instead of thread tape. Liquid sealants provide a more reliable seal and reduce the risk of debris entering the air system.
