Commodore VE/VF Full Air Suspension Kit

Name: Commodore VE/VF Full Air Suspension Kit
Brand: AirMext
SKU: ABK-VEVF-D2
Price: 9625.00 AUD
Availability: OutOfStock

SKU:ABK-VEVF-D2

$9,625.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

or up to 12 months interest free. Fees apply. ZIP

Quantity

Out of stock

PRODUCT DESCRIPTION :

Bolt in Air Suspension for VE or VF Commodore.

This is a full kit including 4 front struts, rear shocks, ride height management ECU, Compressors and Tank.

ECU has a lockout to connect to the handbrake to enable the installation to conform with Australian regulations.

This system is designed for easy bolt-on so it is not required to work with the O.E.M shock absorbers.

This system is 36-level damping adjustable, ride height adjustable, and includes upper mounts in the fronts and rears. The McPherson strut comes with pillow ball top mounts which have ability to adjust the camber degree.

The adjustment range of ride height is between 100-150mm. (based on different applications).

The speed of lowering and raising vehicle ride height is 2-5 seconds only.

This kit comes with 8 x solenoid valves and 2 x remote control which allow you to adjust the ride height while in or out of the car.

AFH wireless memory remote control can display the air tank and 4 front/rear pressure values of air bags. It will automatically modify the value while driving.

There is no complex wire setting; Fast installation.

This kit comes with two remote controls, one is with AFH wireless memory remote control and the other is with simple version. The remote control is available for 4 ride height memories.

The high performance shock absorbers supplied with this kit has 36 levels of adjustable damping, and the damping is set up specifically for better handling.

Warning signal for deficient tank pressure on remote control.

Memory for engine start and automatically orient ride height on remote control.

One touch function. Simply by one press, you can adjust to your ride height.

Power save device (sleeping mode).

Rechargeable Battery (charged by USB).

Function setting for speeding and exhausting.

THIS SYSTEM INCLUDES :

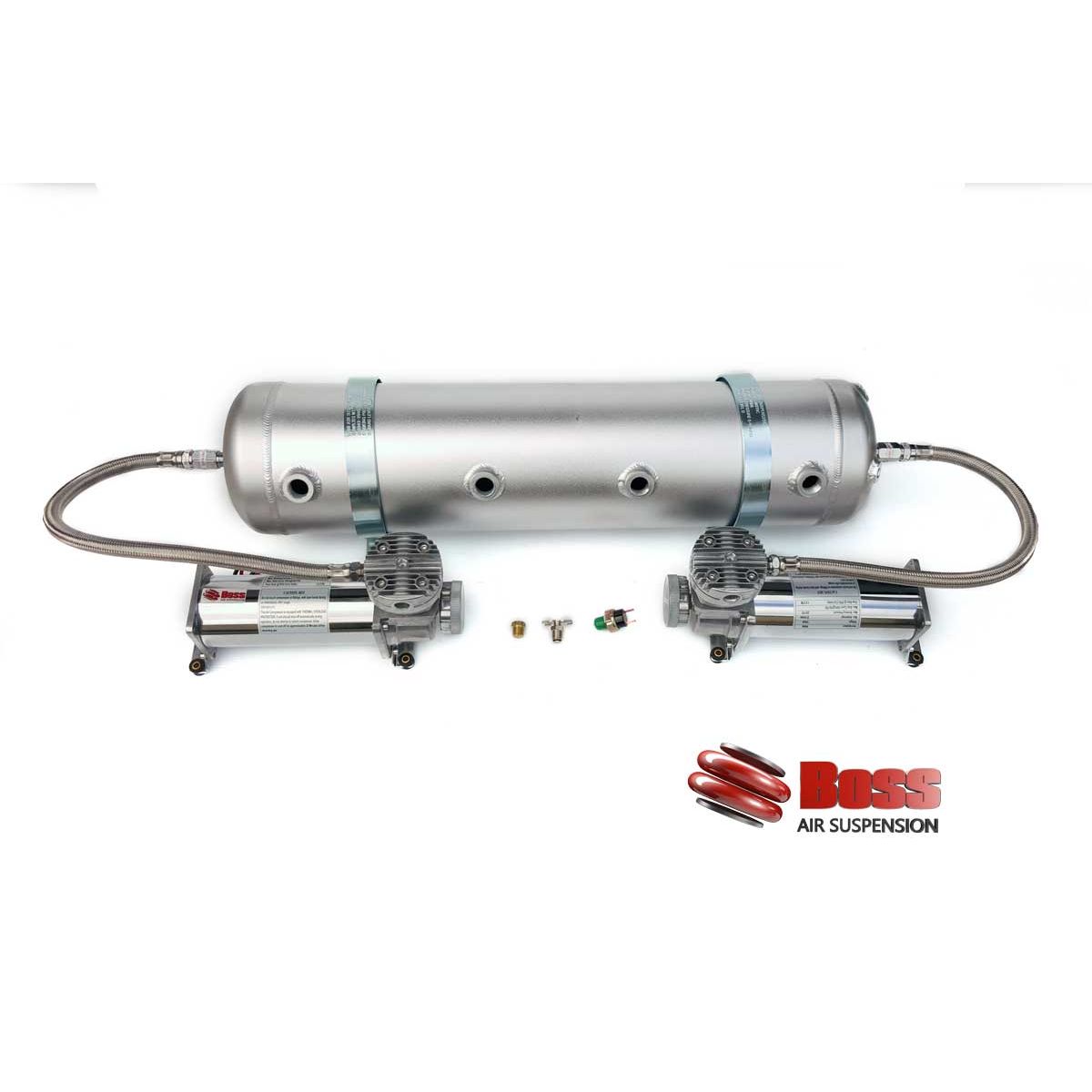

- 15L STAINLESS AIR TANK× 1
- HIGH SPEED COMPRESSOR 100% Duty Cycle × 2
- AIR HOSE × 1
- 16M 1/4" NYLON × 1
- 100A 100% Duty Cycle Solenoid

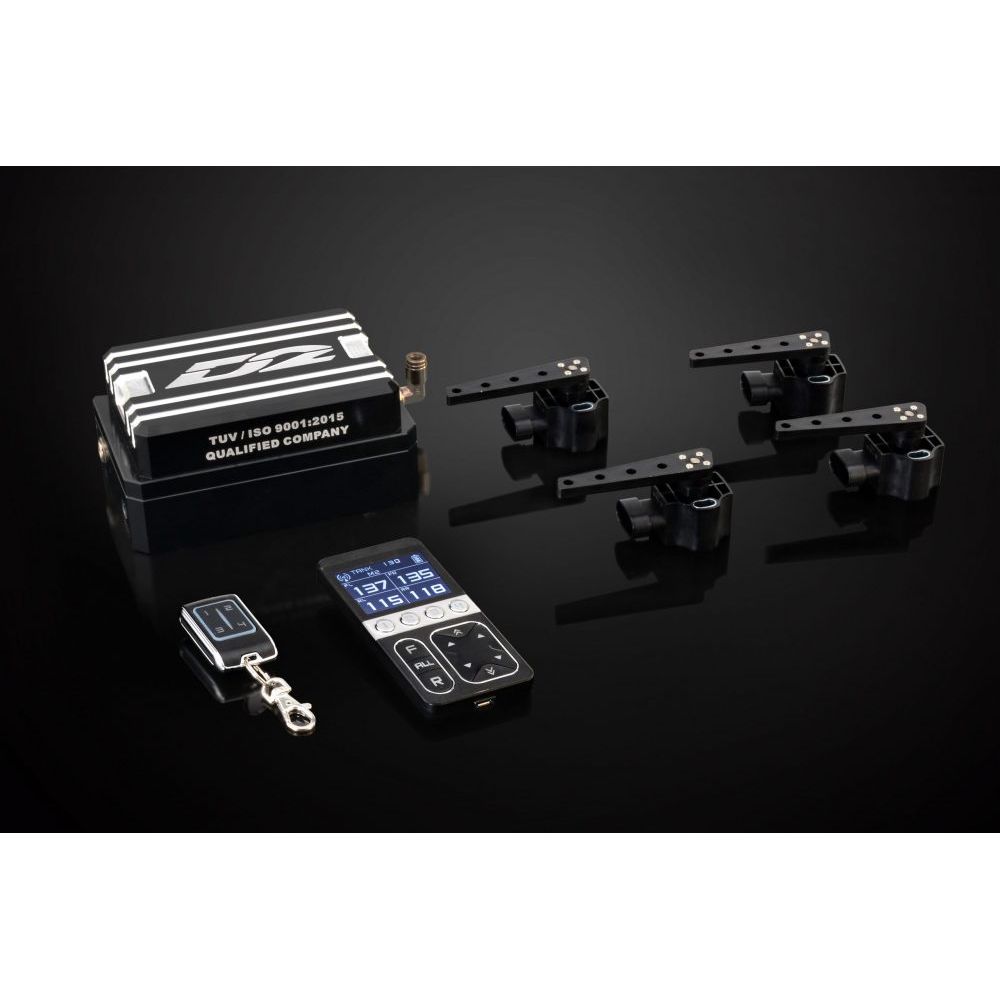

- LCD REMOTE CONTROL ×1 , SIMPLE REMOTE CONTROL ×1
- PRESSURE SENSOR x 1

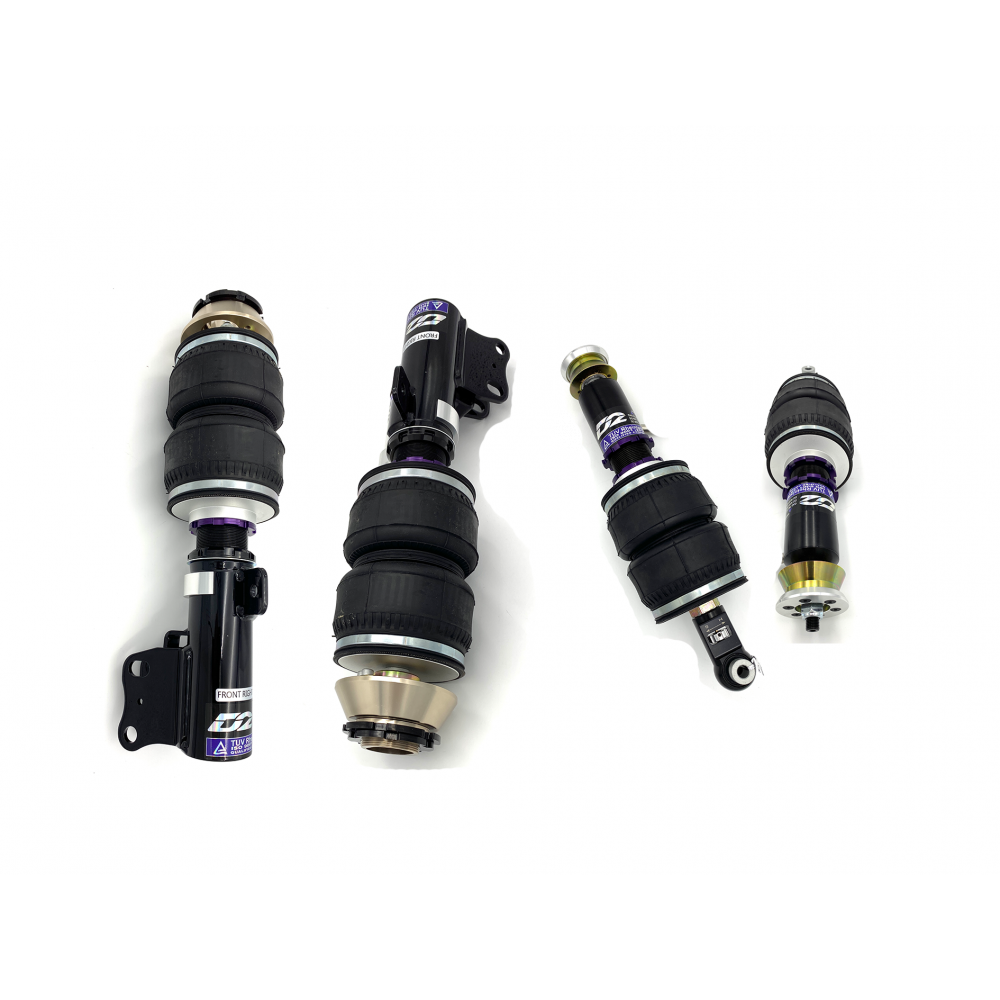

- SHOCK ABSORBERS WITH 36 LEVELS OF ADJUSTABLE DAMPING × 4
- HEIGHT SENSOR KIT x 4
- ECM ASSEMBLY x 1
- MANUAL INSTALLATION × 1

View full details

Frequently asked questions

What is the difference between Load Assist and full air suspension? ⌄

Load Assist kits retain the original suspension (usually leaf springs) and simply help support the load and correct sag. Full air suspension replaces the primary springs with airbags or bag-over-strut units so the vehicle rides entirely on air. Full air systems usually include automatic height control and more complex air management.

Are there legal requirements for full air suspension systems? ⌄

Yes. In many regions, full air suspension must include automatic ride-height control and must not allow large, sudden height changes while driving. Electronic systems typically use a handbrake or speed input so major adjustments are only possible when stationary or at very low speed. Engineering approval or certification is often required.

What is the lift range of the Commodore VE/VF Full Air Suspension Kit? ⌄

The lift range for the Commodore VE/VF Full Air Suspension Kit is adjustable between 100-150mm, depending on the specific application and setup.

How does the ECU ensure compliance with Australian regulations? ⌄

The ECU includes a lockout feature that connects to the handbrake, ensuring that ride height adjustments comply with Australian regulations by preventing changes while the vehicle is in motion.

Can I use the original shock absorbers with this air suspension kit? ⌄

No, the Commodore VE/VF Full Air Suspension Kit is designed as a complete bolt-on solution and does not require the use of the original equipment manufacturer (O.E.M) shock absorbers.

What are the benefits of the 36-level damping adjustment? ⌄

The 36-level damping adjustment allows for fine-tuning of the shock absorbers to suit various driving conditions and personal preferences, enhancing both comfort and handling performance.

How quickly can I adjust the ride height? ⌄

The ride height can be adjusted in just 2-5 seconds, allowing for quick changes to accommodate different driving scenarios or loading conditions.

What makes this air suspension kit different from others? ⌄

This kit is specifically designed for the VE/VF Commodore, offering a complete bolt-on solution with advanced features such as dual remote controls, a high-performance shock absorber system, and a user-friendly ECU that ensures compliance with regulations.
