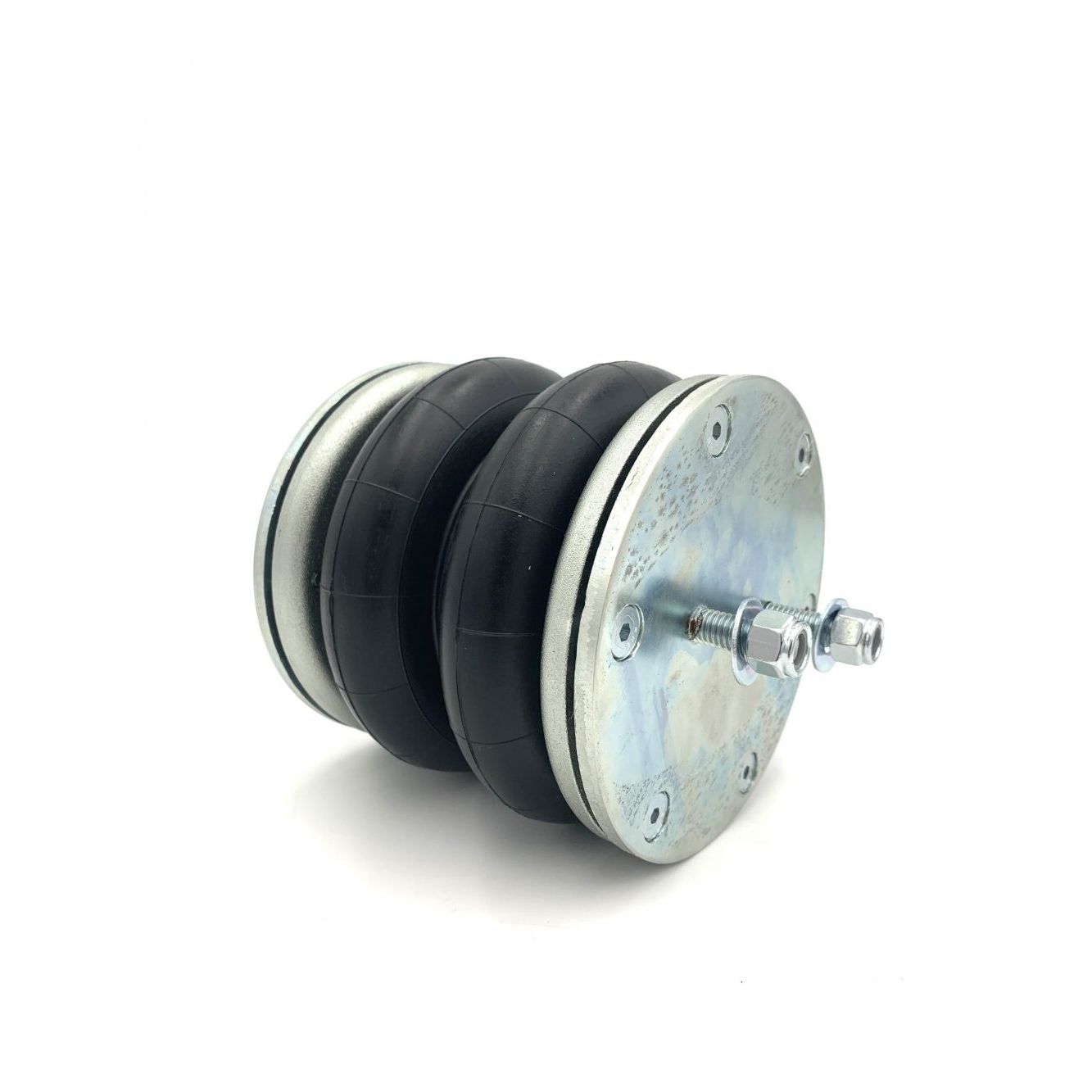

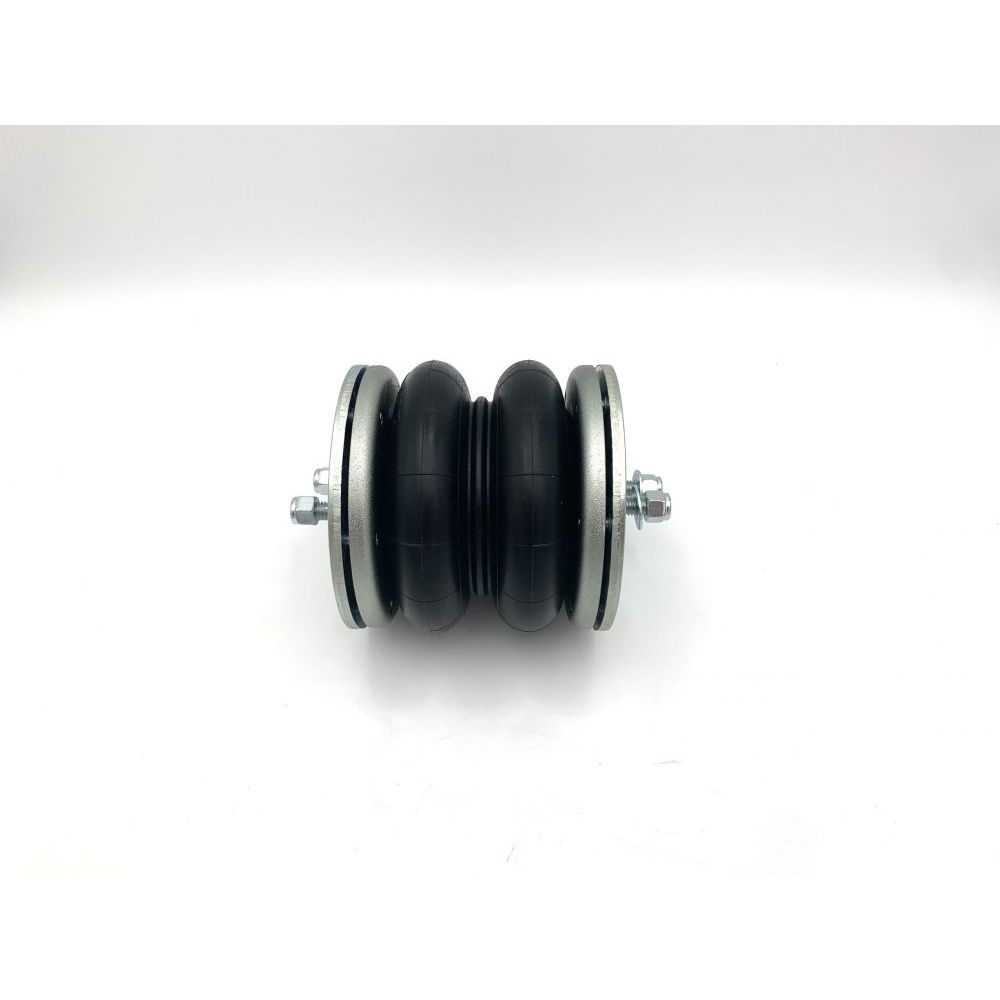

Boss Airbag 2520 Complete

The 2400, 2500 and 2600 series are all double-bellow Boss airbags in different diameters and load capacities. 2400 bags are smaller in diameter, 2500 are the most common mid-size bag used in many Load Assist kits, and 2600 bags are larger and suit heavier-duty applications where there is more space available around the axle and chassis.

Triple-bellow airbags such as the 2503 and 2603 are used where you need more travel or a taller free height, typically on vehicles with more than 2 inches of lift or long-travel suspension. They allow the suspension to sit higher at a given pressure while still providing the correct load support.

No, airbags are generally only interchangeable within the same series. For example, a 2500 double-bellow bag can often be swapped for a 2503 triple-bellow bag in a kit designed for that series, but you cannot simply fit a 2600 or 2400 into 2500 brackets. The bracket diameter, bolt pattern and clearances are all designed around a specific series.

Boss airbags typically have a recommended working range of around 5–160 psi, with a recommended test pressure of about three times the maximum working pressure and burst testing well above that. Always refer to the specific bag’s data and never exceed the recommended working pressure in normal use.

Replacement airbags must be installed on the correct brackets with the correct beadlock rings or hardware as designed for that kit. Ensure there is adequate clearance from tyres, exhausts, sharp edges and moving suspension parts, and maintain minimum pressure so the bag does not fold or pinch under full compression or articulation.

The Boss Airbag 2520 has a maximum working pressure of 160psi. It is tested to withstand a burst pressure of 600psi, ensuring durability and reliability under load.

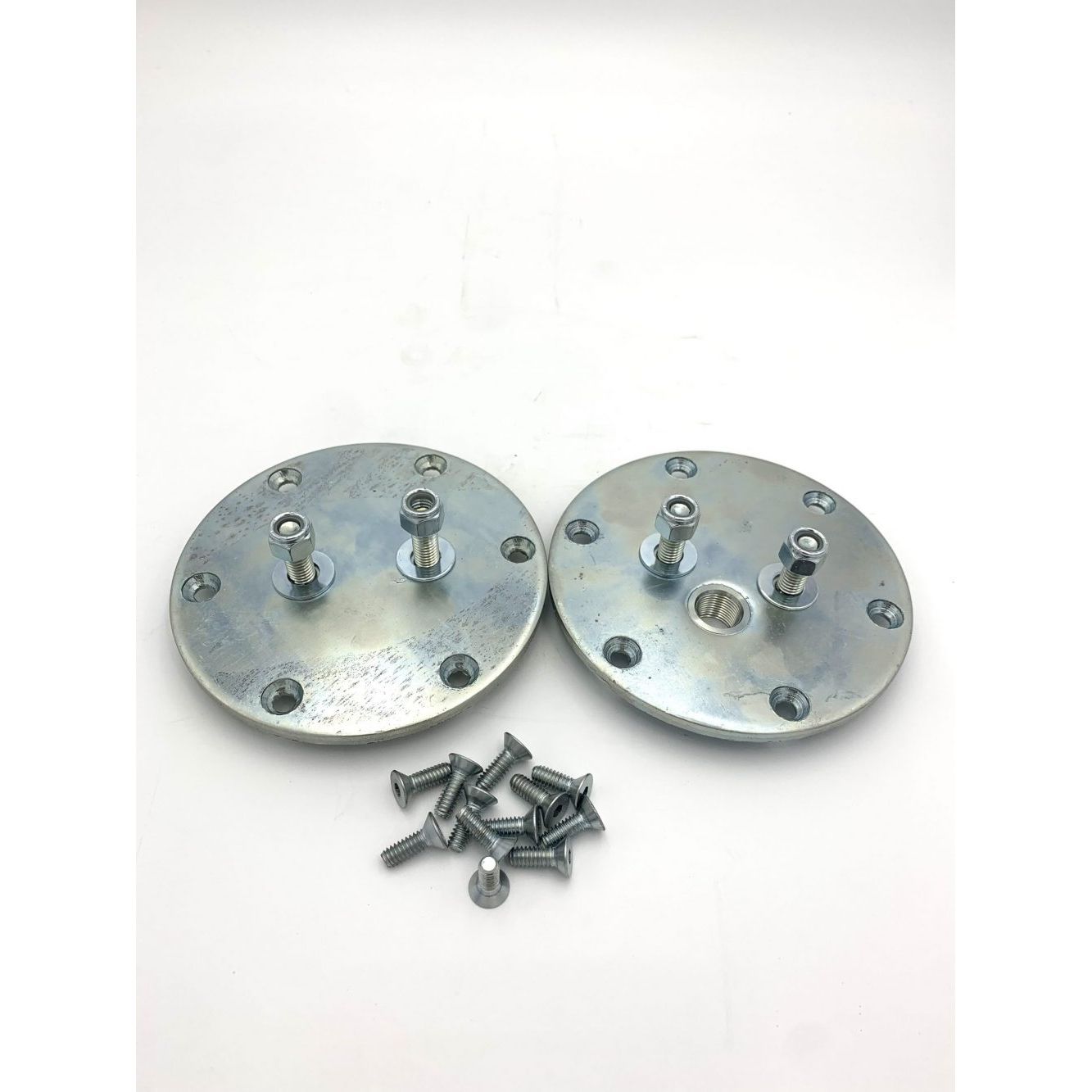

The nominal ride height for the Boss Airbag 2520 is 110mm. If fitted with end plates, the nominal ride height increases to 120mm.

When fully compressed, the Boss Airbag 2520 measures 65mm in height with a maximum diameter of 140mm. This compact size allows for effective fitment in various applications.

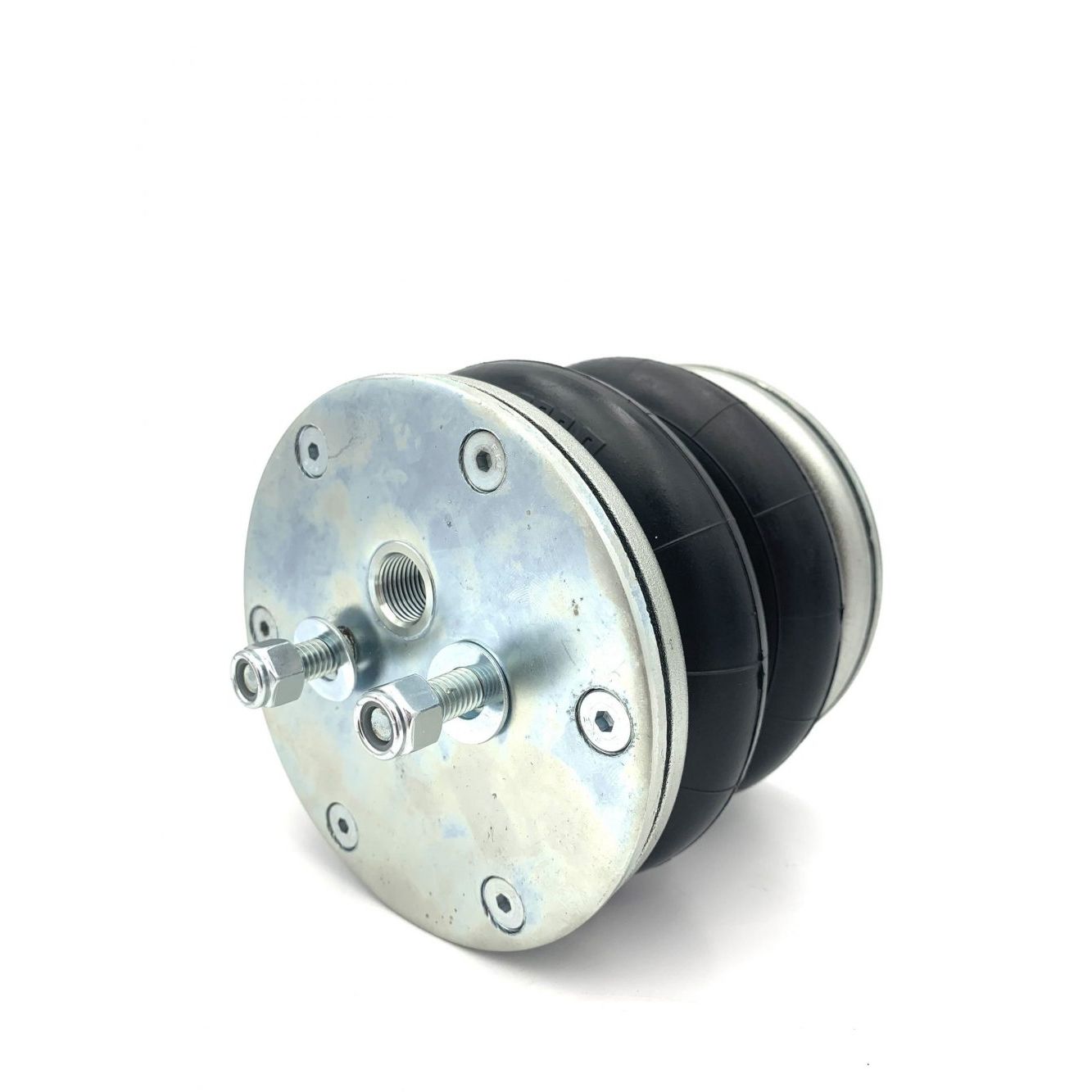

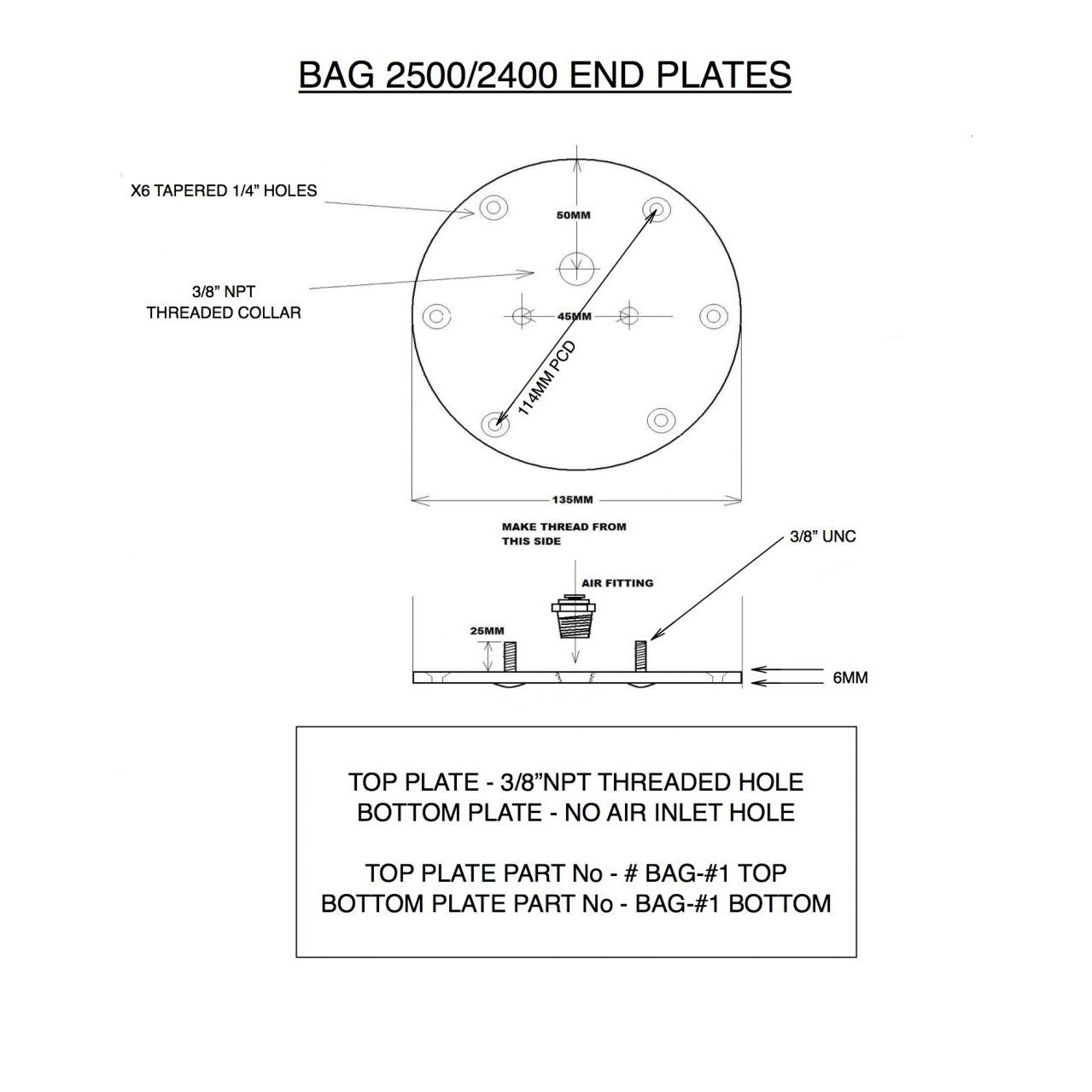

The Boss Airbag 2520 features a 3/8 NPT female thread on one end plate for easy connection to air lines. Please note that no air fitting is supplied with the product.

The Boss Airbag 2520 is typically used in Load Assist applications to enhance vehicle stability and handling when towing or carrying heavy loads. It helps to level the vehicle and improve ride quality.

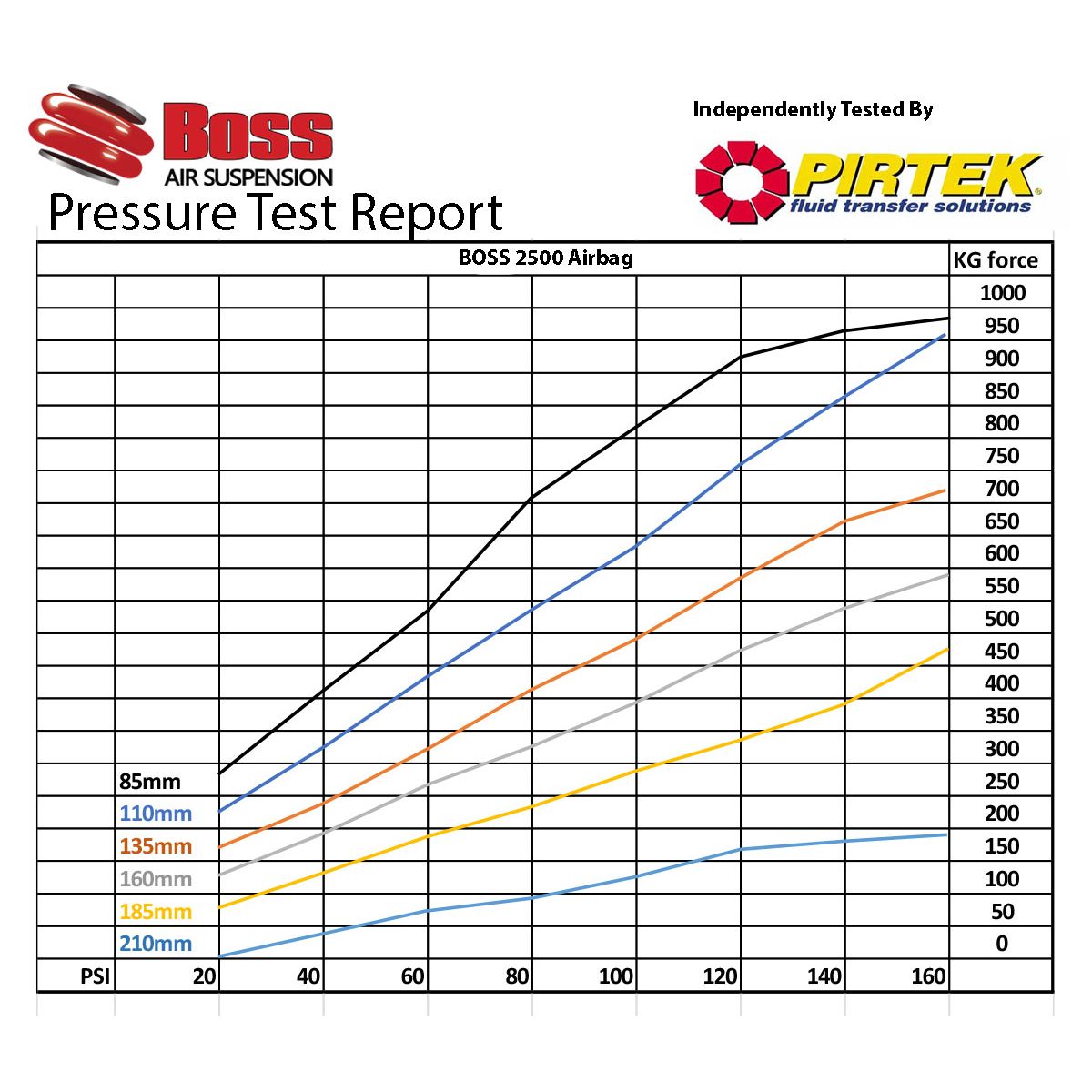

The Boss Airbag 2520 is part of the Extreme Series, offering a 2500lb (1080kg) capacity at 100psi. It is designed with a robust construction, including a beadlock-style aluminium clamping ring, which provides superior durability compared to other brands that may use crimped end plugs.
