Articulation Kit for Air Bypass Airbag Suspension

An air management system typically includes a compressor, air tank, valves or a valve block, pressure sensors or switches, airlines, a control unit or switches, and in full air setups, height sensors. Together they control how air is delivered to the airbags or struts and how the system maintains or adjusts ride height.

Yes. Any automatic ride-levelling or preset height system requires an air tank so there is enough stored air to raise the vehicle quickly without overworking the compressor. The tank buffers demand and allows smoother, more reliable height changes.

Manual systems use simple paddle valves or switches to control air pressure by feel, and are typically used for Load Assist or basic custom setups. Electronic systems use solenoid valves, height sensors and an ECU to manage presets and maintain ride height automatically. Legal full-air conversions generally require some form of automatic height control.

Regulations typically require that major ride-height changes do not occur while the vehicle is in motion. Electronic air management systems usually monitor handbrake or vehicle speed and only allow height changes when stationary or below a defined speed, to maintain safety and stability.

The Articulation Kit allows for increased upward wheel travel and downward droop by enabling air to move freely between the left and right airbags. This is particularly beneficial in rocky off-road conditions, enhancing vehicle stability and articulation.

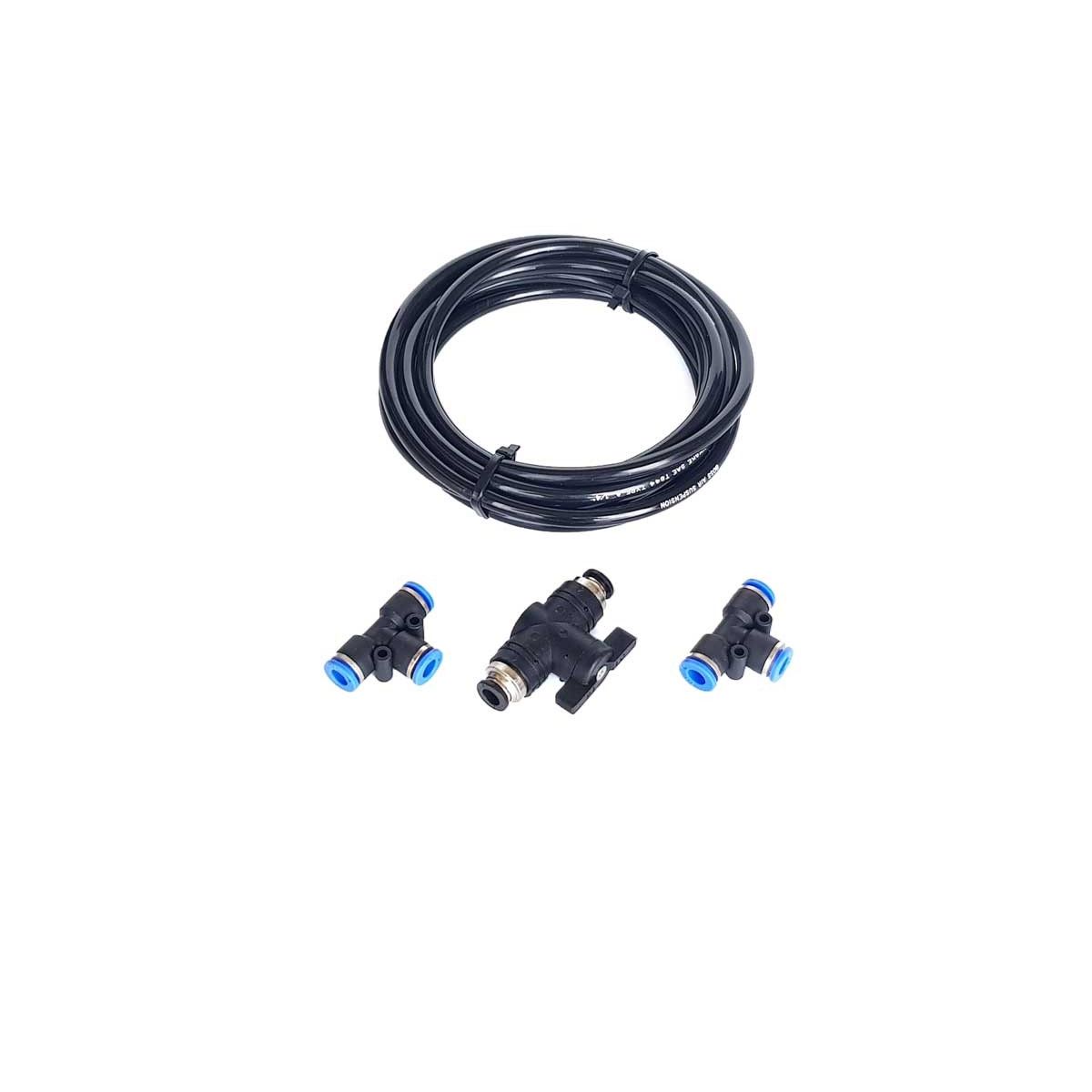

The kit includes a ball valve that can be manually opened or closed, connecting the airlines between the left and right airbags. When activated, this allows air to transfer between the airbags, improving suspension performance on uneven terrain.

This kit is designed for off-road environments and should only be activated when the vehicle is stationary or moving at speeds below 10KPH. Using it inappropriately can lead to instability and potential damage.

The Articulation Kit is specifically designed for Boss Load Assist kits that utilise airbags. Ensure that your existing kit is compatible with the air bypass feature before installation.

No, the Articulation Kit is intended for off-road use only. Activating the bypass feature on-road can compromise vehicle handling and safety.

Installation requires basic mechanical skills and tools to connect the ball valve and airline fittings to your existing airbag system. Ensure that all connections are secure to prevent air leaks.
