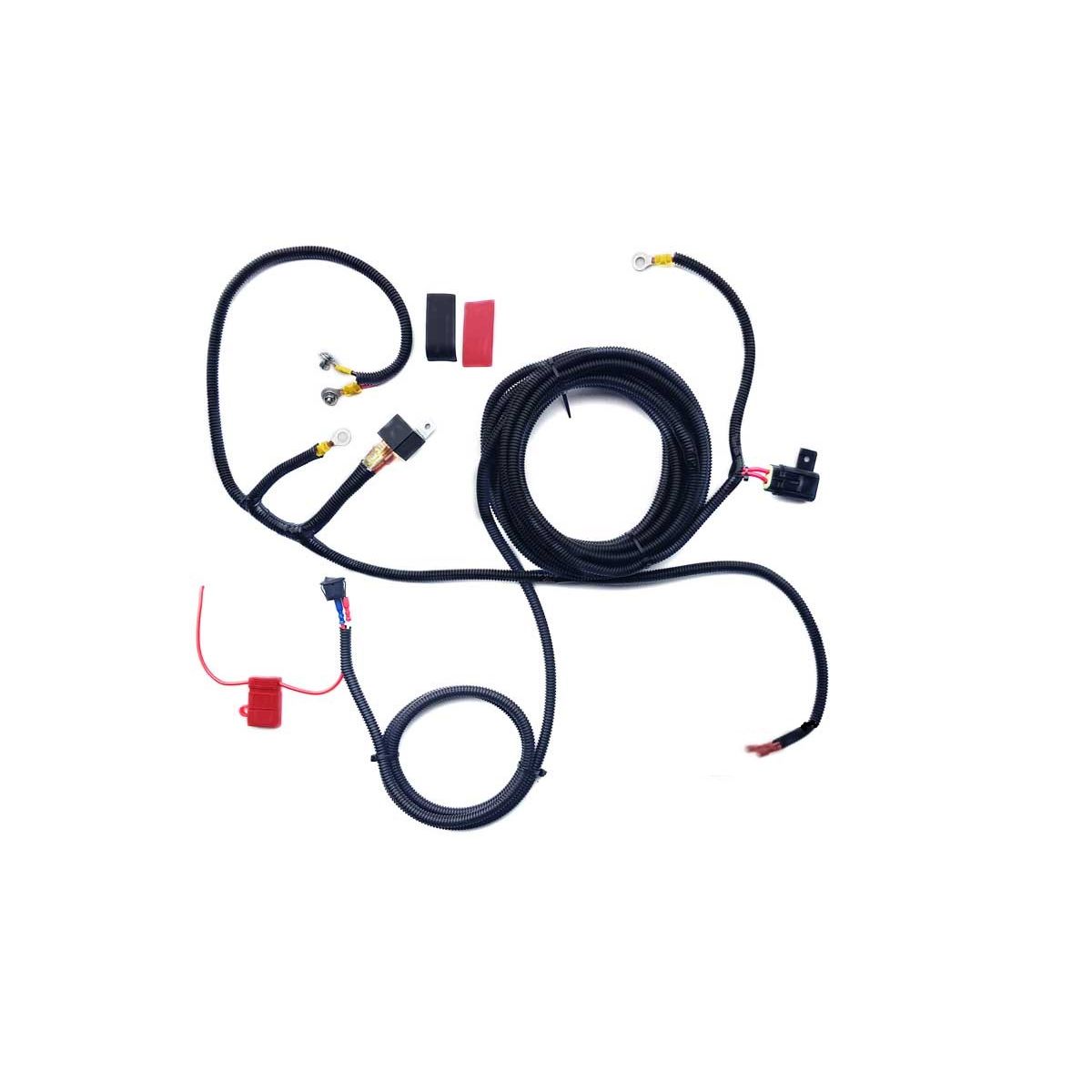

30 Amp Onboard Air Wiring Loom

For Load Assist kits where you are only inflating airbags, a compact compressor like the Boss PX01 is usually ideal. It is sized to adjust bag pressure without the need for a large tank and is simple to install.

If you want to inflate tyres or use air for other purposes, you will need an air tank and a larger compressor with a longer duty cycle, such as the PX06 or the heavy-duty PX07. These compressors can deliver more air for longer periods without overheating.

For basic Load Assist airbag adjustment only, you can run a suitable compressor with or without a small tank. For ride-levelling systems, full air suspension, or frequent tyre inflation, a tank is strongly recommended so the compressor is not cycling constantly.

Mount the compressor on a solid surface, away from excessive heat, water splash and debris. Provide adequate ventilation around the motor and use the supplied vibration isolators. Follow the wiring instructions carefully and use the correct fuse and relay as specified.

The 30amp Onboard Air Wiring Loom is ideal for use with Boss PX02 and PX06 compressors. It is designed to provide a reliable connection for these specific models, ensuring optimal performance.

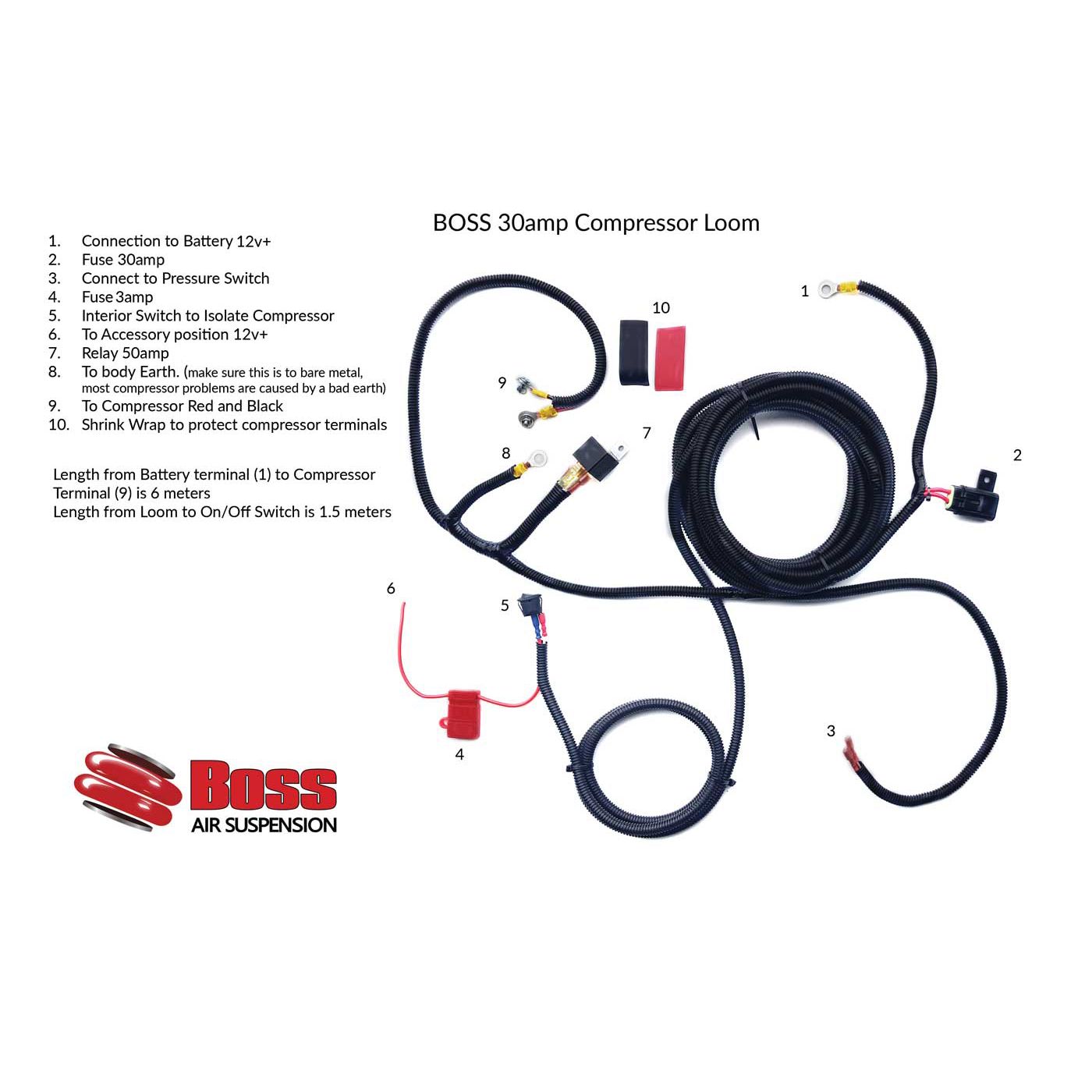

The wiring loom features a 6-metre cable length, which is suitable for most vehicles, including 4x4s and 12V trucks. Additionally, there is a 1.5-metre cable length that runs into the cab for easy access to a remote on/off switch.

Yes, the loom includes waterproof fuse holders for both the 3amp and 30amp fuses, providing protection against moisture and ensuring reliable operation in various conditions.

This wiring loom is specifically designed for Boss compressors like the PX02 and PX06. While it may work with other brands, we recommend using it with Boss products for optimal compatibility and performance.

The 30amp Onboard Air Wiring Loom features an easy DIY plug-and-play setup, making installation straightforward. Most wire ends are terminated with spade/plug or ring fittings for quick fitment, allowing for a hassle-free installation process.

The 50 amp relay included with the 30amp Onboard Air Wiring Loom is designed to handle high current loads, ensuring that the compressor operates efficiently without overloading the wiring system. This enhances the reliability and safety of your onboard air setup.
