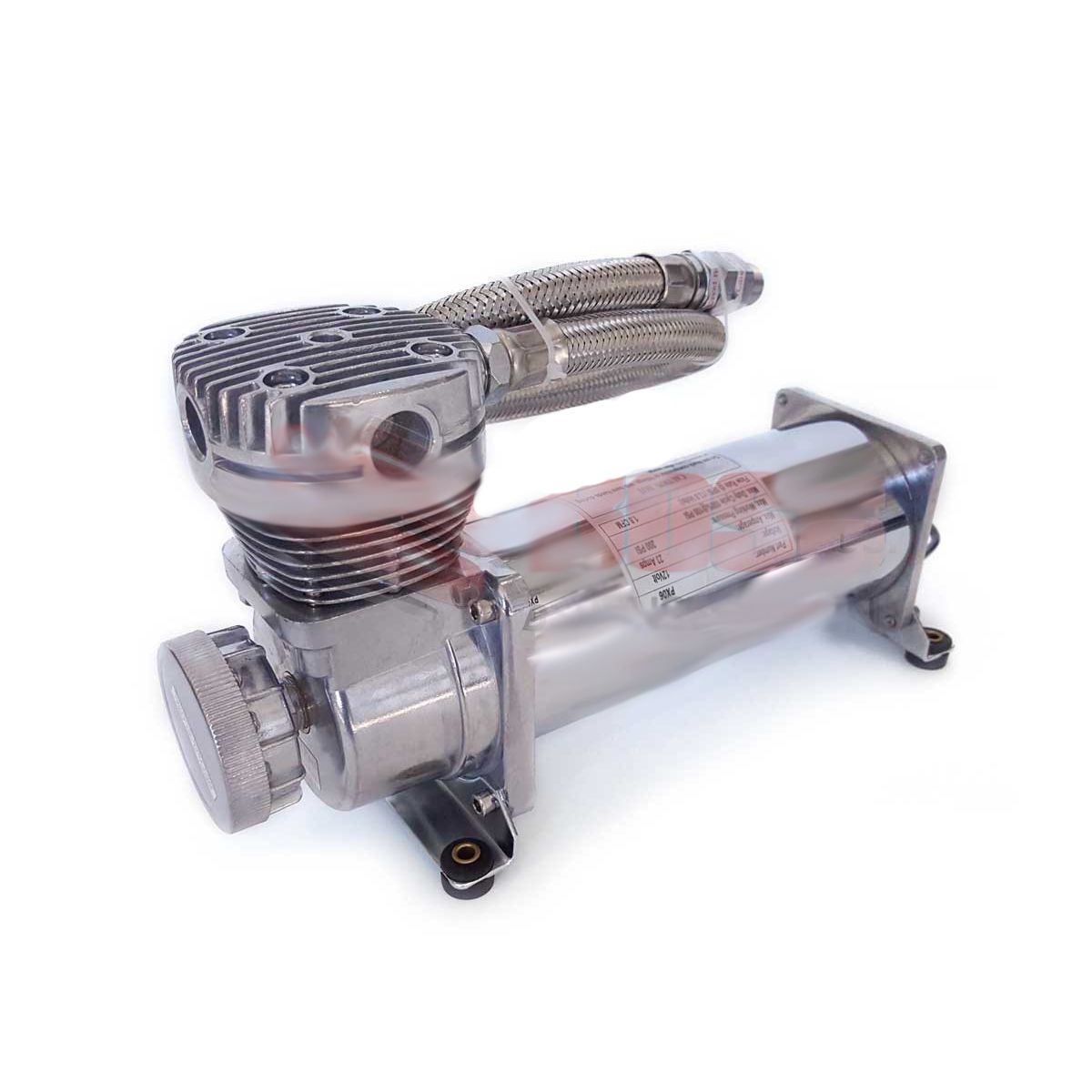

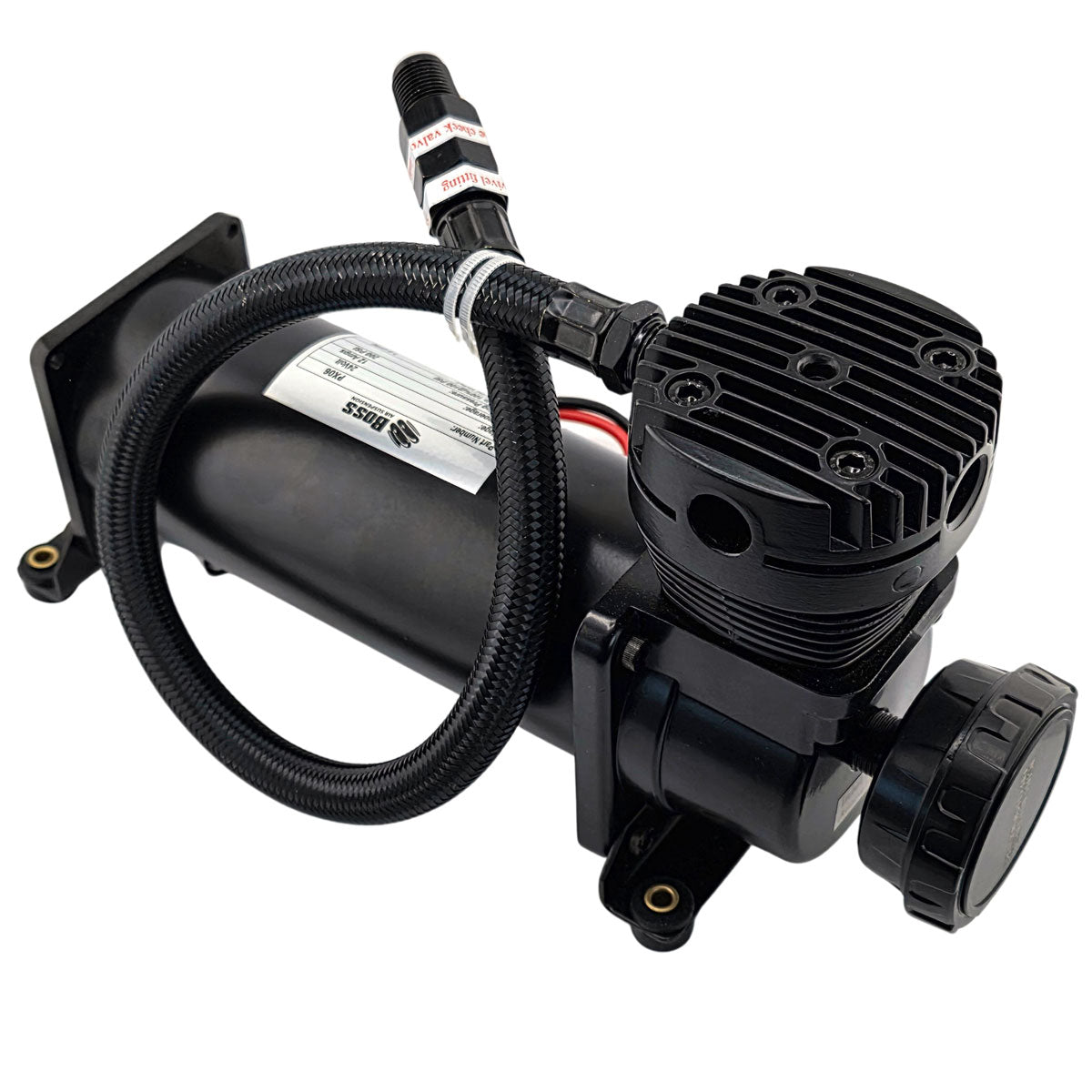

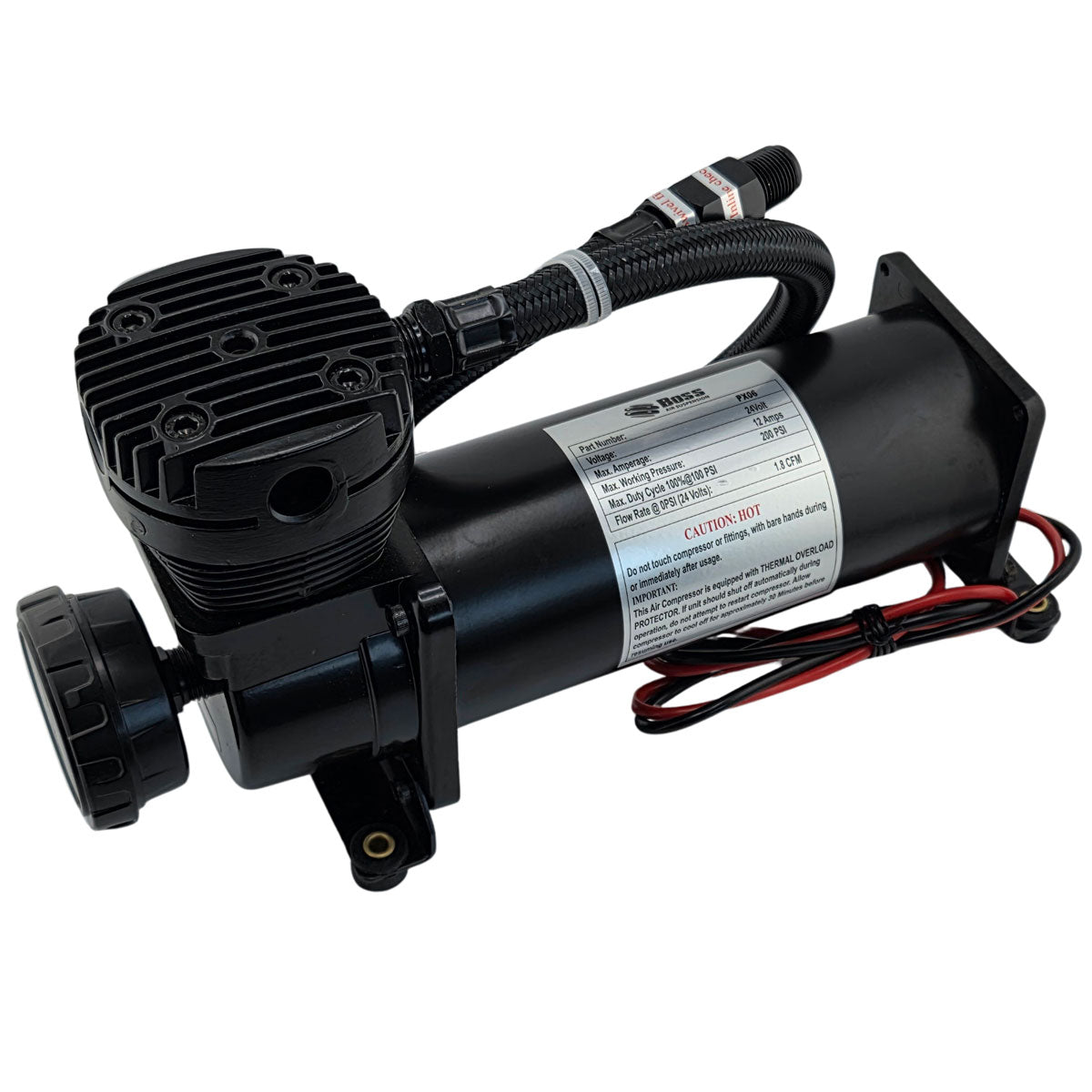

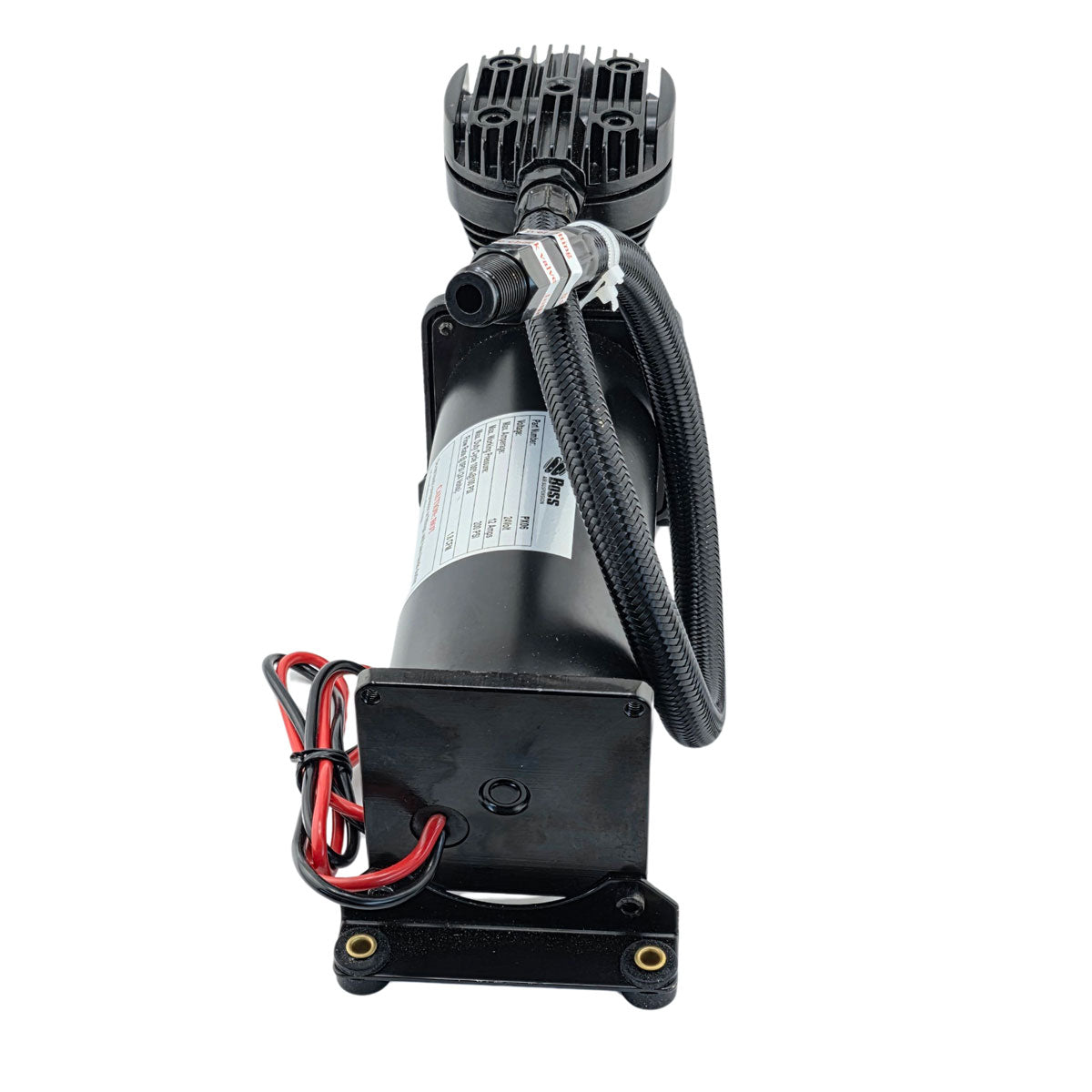

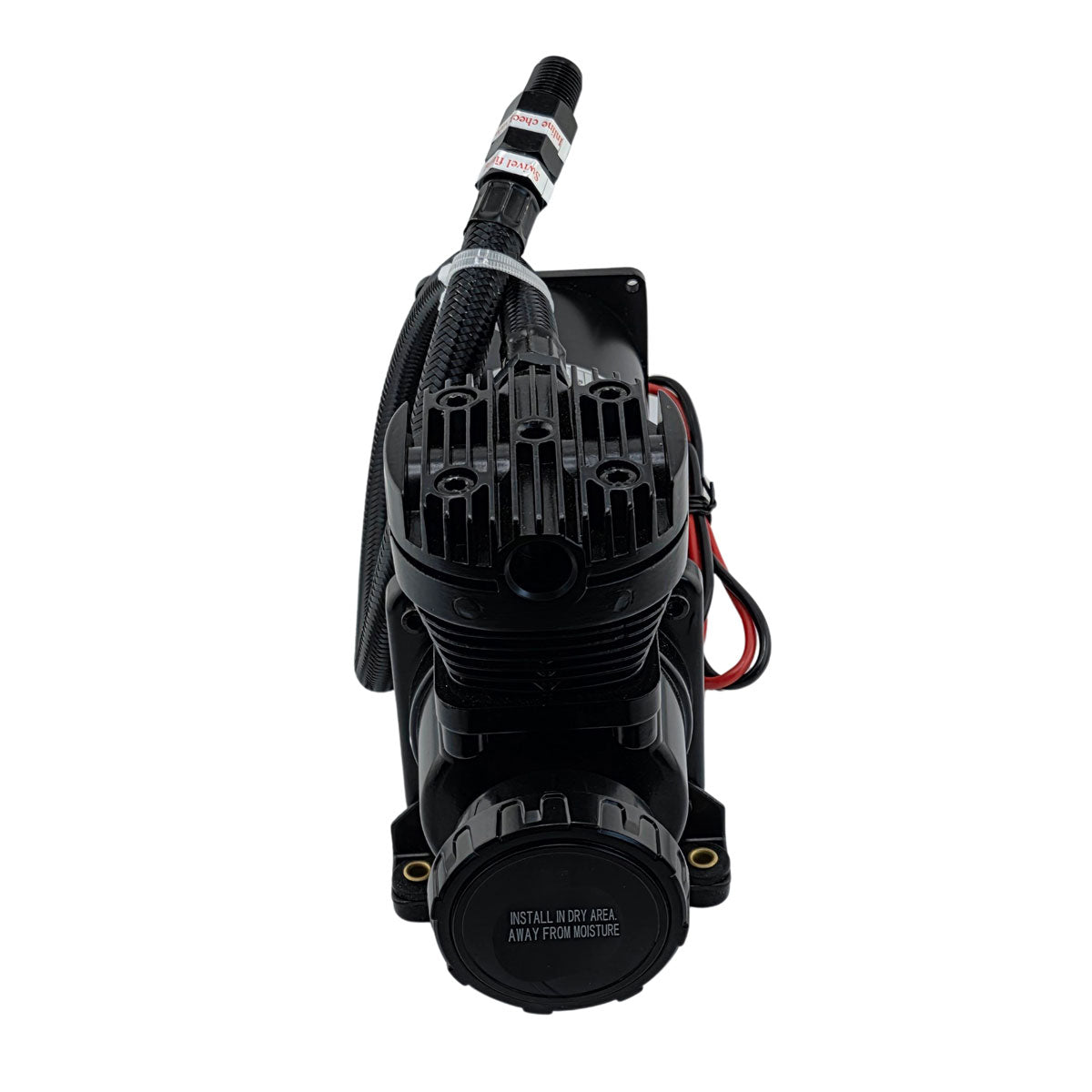

24 Volt Air Compressor PX06

For Load Assist kits where you are only inflating airbags, a compact compressor like the Boss PX01 is usually ideal. It is sized to adjust bag pressure without the need for a large tank and is simple to install.

If you want to inflate tyres or use air for other purposes, you will need an air tank and a larger compressor with a longer duty cycle, such as the PX06 or the heavy-duty PX07. These compressors can deliver more air for longer periods without overheating.

For basic Load Assist airbag adjustment only, you can run a suitable compressor with or without a small tank. For ride-levelling systems, full air suspension, or frequent tyre inflation, a tank is strongly recommended so the compressor is not cycling constantly.

Mount the compressor on a solid surface, away from excessive heat, water splash and debris. Provide adequate ventilation around the motor and use the supplied vibration isolators. Follow the wiring instructions carefully and use the correct fuse and relay as specified.

The Boss 24 Volt Air Compressor PX06 has a maximum working pressure of 200psi, making it suitable for a variety of air suspension applications.

The PX06 compressor features a 100% duty cycle at 100psi, allowing for continuous operation without overheating, ideal for air suspension use.

Yes, the PX06 compressor is oil-less and can be mounted either vertically or horizontally, providing flexibility for installation in various vehicle setups.

The dimensions of the Boss 24 Volt Air Compressor PX06 are 300mm long, 170mm high, and 100mm wide, making it compact enough for various installation locations.

The PX06 compressor has a maximum amp draw of 12 amps, which should be considered when wiring and selecting a power source for installation.

The PX06 compressor is primarily designed for air suspension use. For air tools, a larger compressor with a higher duty cycle is recommended.
