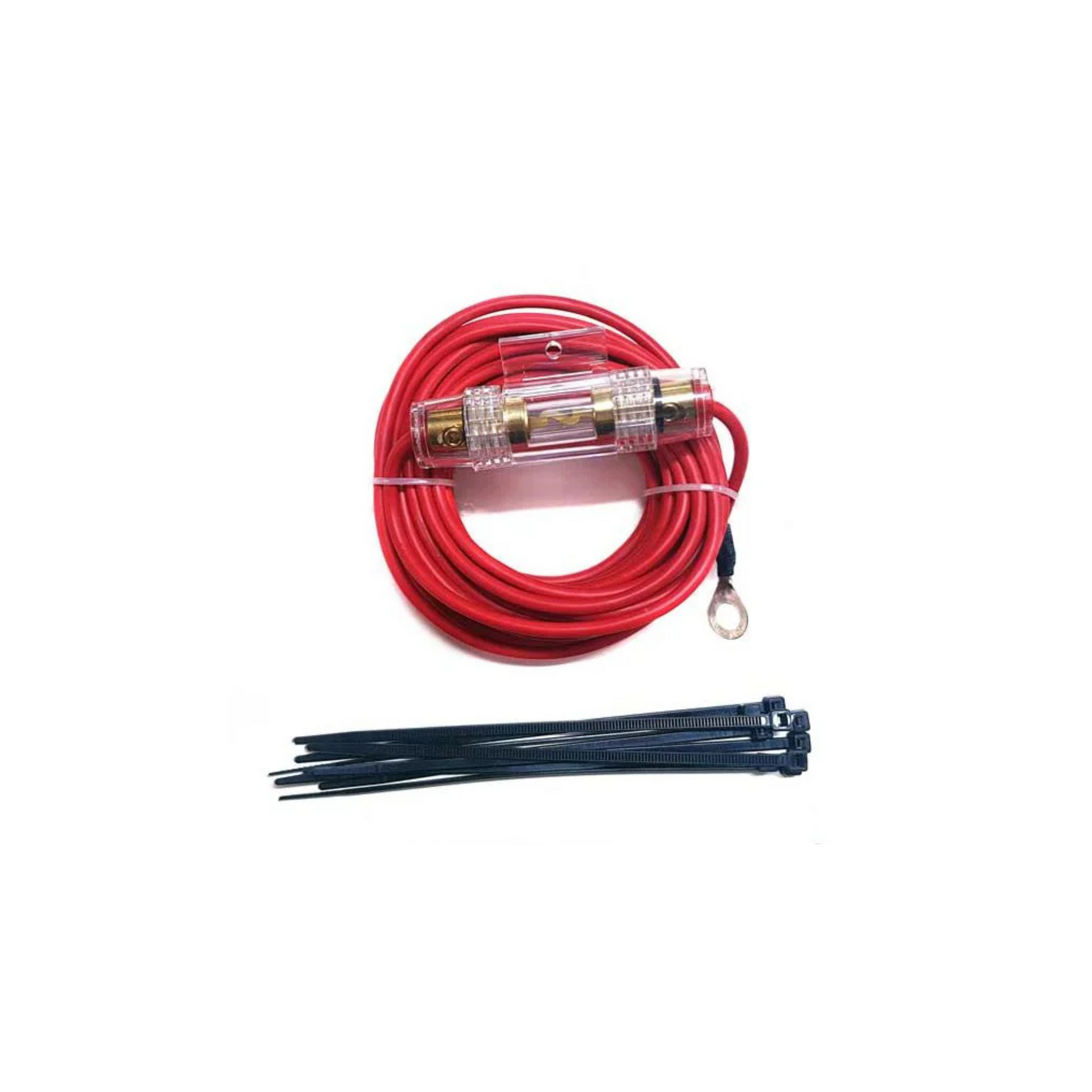

12v Air Compressor PX01 Wiring Kit

For Load Assist kits where you are only inflating airbags, a compact compressor like the Boss PX01 is usually ideal. It is sized to adjust bag pressure without the need for a large tank and is simple to install.

If you want to inflate tyres or use air for other purposes, you will need an air tank and a larger compressor with a longer duty cycle, such as the PX06 or the heavy-duty PX07. These compressors can deliver more air for longer periods without overheating.

For basic Load Assist airbag adjustment only, you can run a suitable compressor with or without a small tank. For ride-levelling systems, full air suspension, or frequent tyre inflation, a tank is strongly recommended so the compressor is not cycling constantly.

Mount the compressor on a solid surface, away from excessive heat, water splash and debris. Provide adequate ventilation around the motor and use the supplied vibration isolators. Follow the wiring instructions carefully and use the correct fuse and relay as specified.

The PX01 Wiring Kit is specifically designed for the Boss 12 Volt Air Compressor PX01. While it may be compatible with other compressors, we recommend using the kit as intended to ensure optimal performance and safety.

The Boss PX01 compressor typically draws up to 15 amps during operation. The included 15 amp fuse in the wiring kit is designed to protect the circuit from overloads.

Yes, the PX01 compressor is suitable for inflating tyres, particularly for light to medium-duty applications. It is ideal for use with Boss Load Assist airbags and can also be used for general inflation tasks.

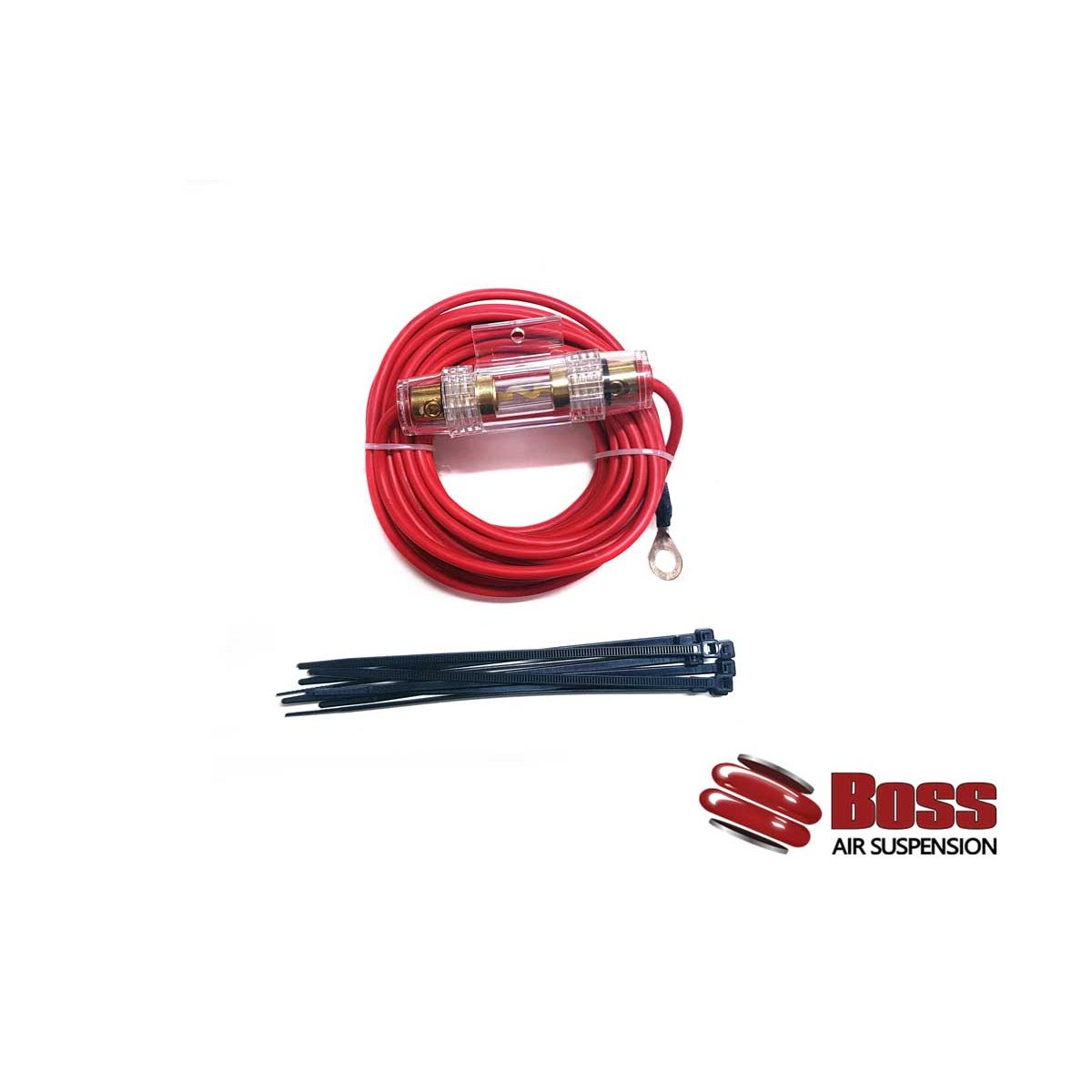

To install the PX01 Wiring Kit, connect the power cable to the battery, ensuring the red positive terminal is connected correctly. Use the waterproof fuse holder and 15 amp fuse to protect the circuit. Follow the installation instructions provided with the compressor for detailed guidance.
