Boss Air Suspension

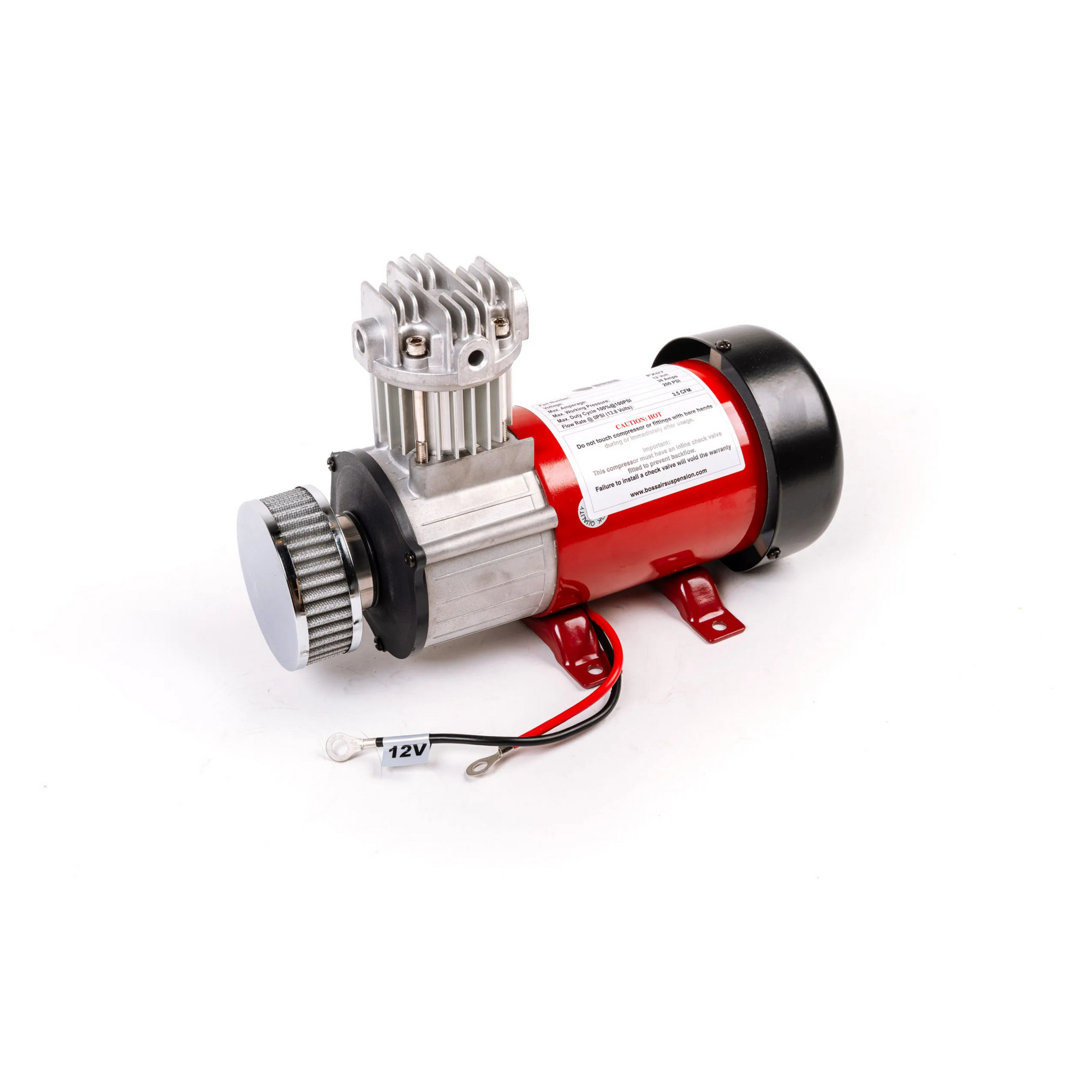

12 Volt Air Compressor PX07 BFC

12 Volt Air Compressor PX07 BFC

COM-PX07-B/F/C

$520.00 AUD
$0.00 AUD $520.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

or up to 12 months interest free. Fees apply. ZIP

21 in stock

Description

12v Air Compressor 3/4 hp engine 100% duty cycle. Recommended working pressure 0-150psi maximum pressure 200psi – 31.5 amp maximum draw. Fan cooled engine and cylinder head, oil free design, 3/8npt ported head, rebuildable design, crank case fed – external washable air filter, cast aluminum legs, special piston valve design for maximum performance – MUST USE CHECK VALVE TO PREVENT BACK FLOW+ 40 AMP FUSE – NEVER OIL THIS COMPRESSOR

Suitable for industrial and automotive use. Up to 30L tanks. Best used with an air tank.

Includes:

  • PX-07 Compressor
  • Teflon Coated Braided Hose
  • Check Valve
  • 3/8 Flare Fitting
  • Size – 335 long X 225 High X 145 Wide
  • 7.2 Kg
  • IP55 Rated
  • 100 Litre Free Flow. (Approx. 3.5 CFM)

    Compressor size - 335mm long x 225mm High x 145mm Wide.

    31.5 Max amp Draw

    7.2 Kg

View full details

Frequently asked questions

Which Boss compressor is best for Load Assist kits? ⌄

For Load Assist kits where you are only inflating airbags, a compact compressor like the Boss PX01 is usually ideal. It is sized to adjust bag pressure without the need for a large tank and is simple to install.

What if I want to inflate tyres or run air tools as well? ⌄

If you want to inflate tyres or use air for other purposes, you will need an air tank and a larger compressor with a longer duty cycle, such as the PX06 or the heavy-duty PX07. These compressors can deliver more air for longer periods without overheating.

Do I need a tank with my compressor? ⌄

For basic Load Assist airbag adjustment only, you can run a suitable compressor with or without a small tank. For ride-levelling systems, full air suspension, or frequent tyre inflation, a tank is strongly recommended so the compressor is not cycling constantly.

How should I mount a Boss compressor? ⌄

Mount the compressor on a solid surface, away from excessive heat, water splash and debris. Provide adequate ventilation around the motor and use the supplied vibration isolators. Follow the wiring instructions carefully and use the correct fuse and relay as specified.

What is the maximum pressure the PX07 BFC can achieve? ⌄

The Boss 12 Volt Air Compressor PX07 BFC can achieve a maximum pressure of 200 psi, with a recommended working pressure range of 0-150 psi for optimal performance.

What is the duty cycle of the PX07 BFC compressor? ⌄

This compressor features a 100% duty cycle, meaning it can operate continuously without overheating, making it suitable for both industrial and automotive applications.

What are the dimensions and weight of the PX07 BFC compressor? ⌄

The PX07 BFC measures 335mm long, 225mm high, and 145mm wide, weighing in at 7.2 kg. Its compact size makes it easy to install in various setups.

What is the maximum amp draw for the PX07 BFC? ⌄

The PX07 BFC has a maximum amp draw of 31.5 amps. It is essential to use a 40 amp fuse to protect the compressor and ensure safe operation.

Can the PX07 BFC be used for inflating tyres? ⌄

Yes, the PX07 BFC can be used for inflating tyres, especially when paired with an air tank. Its high flow rate of approximately 3.5 CFM makes it efficient for this purpose.
