Boss Air Suspension

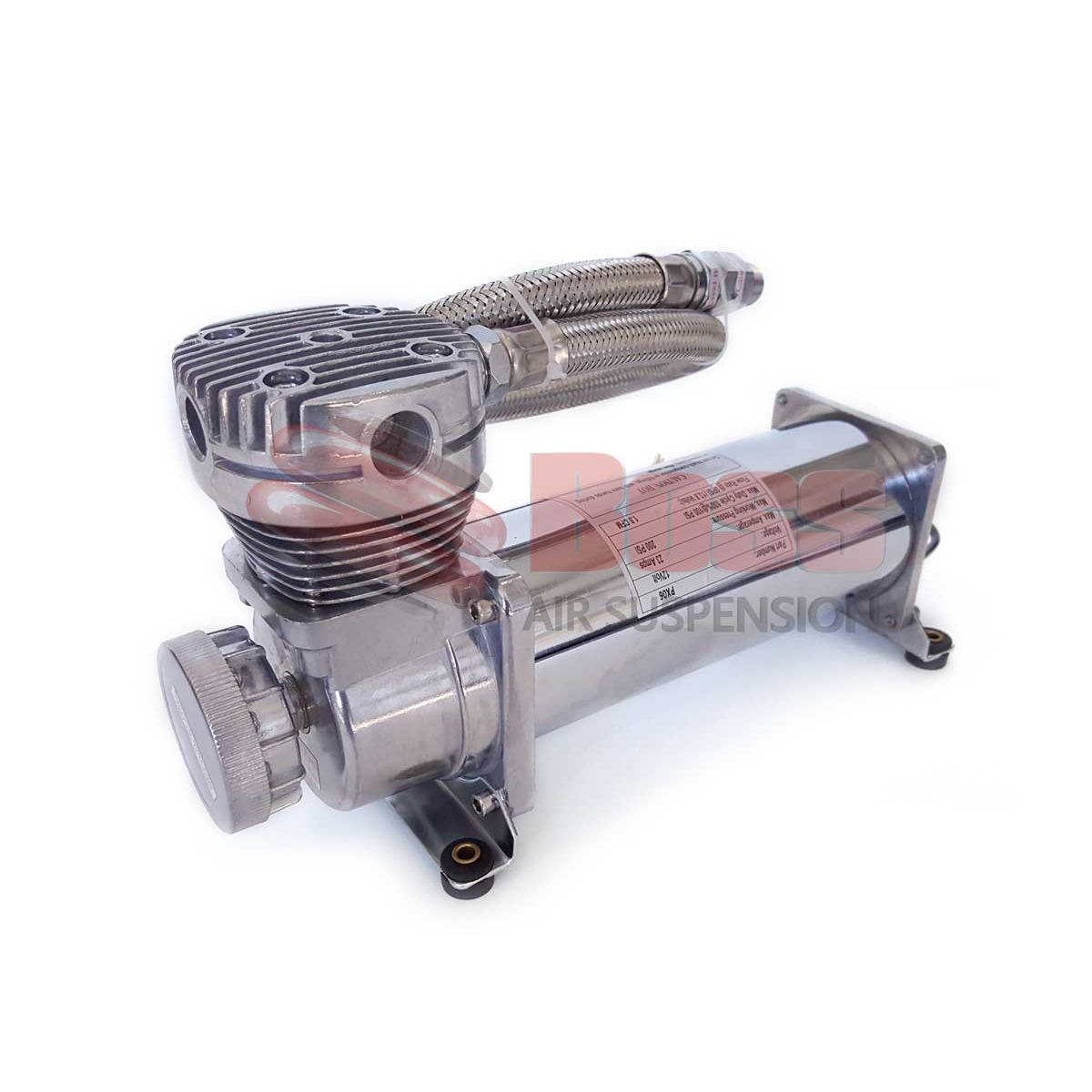

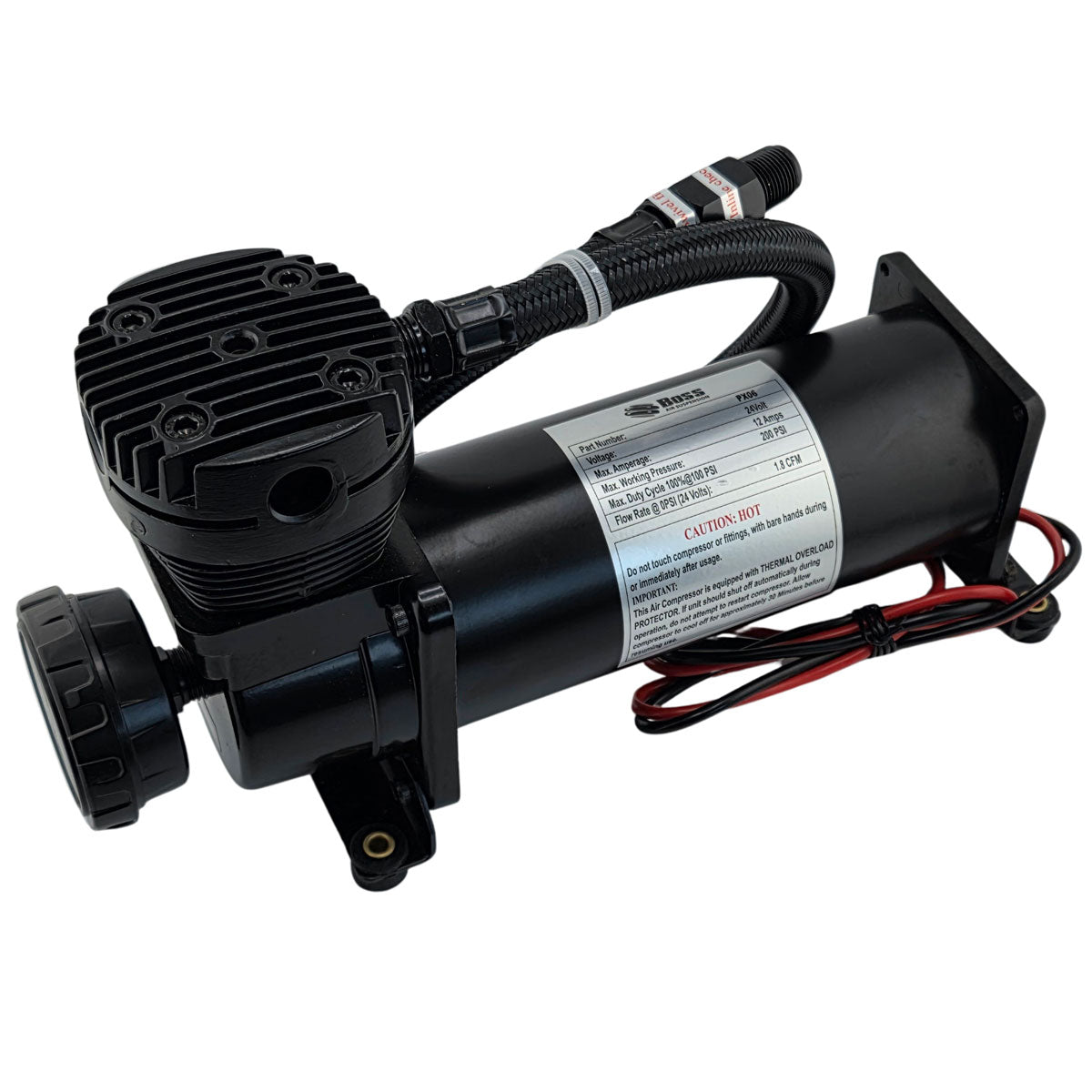

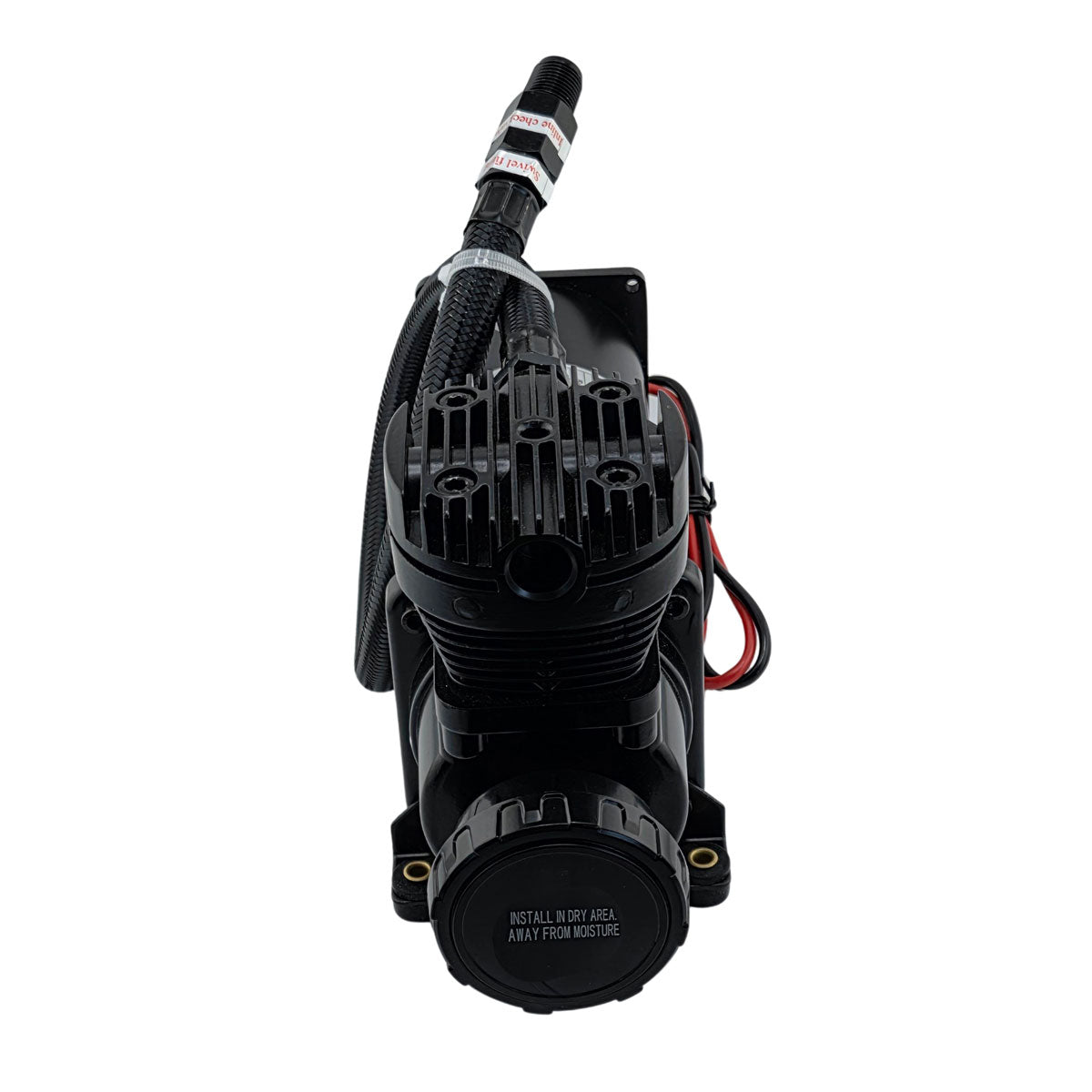

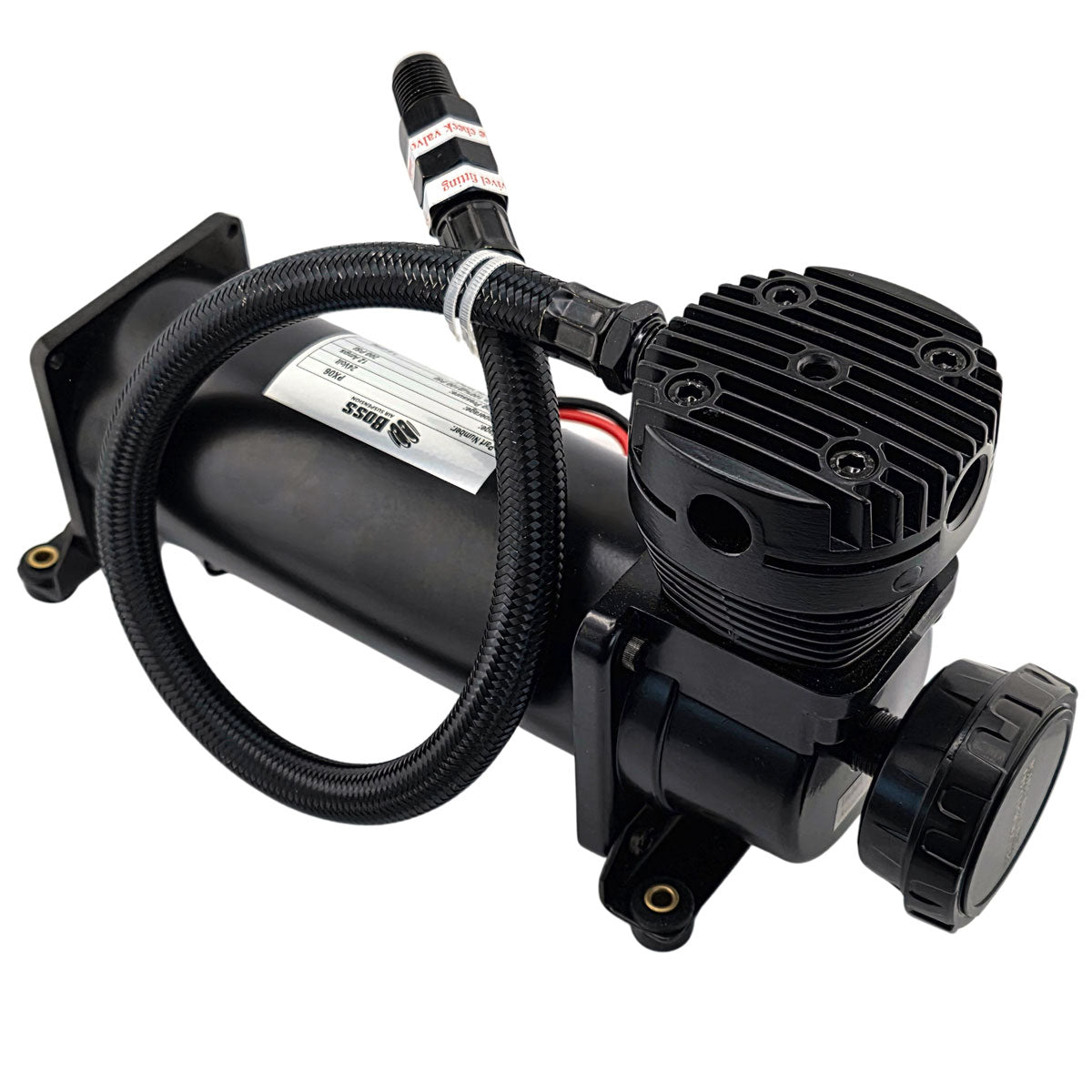

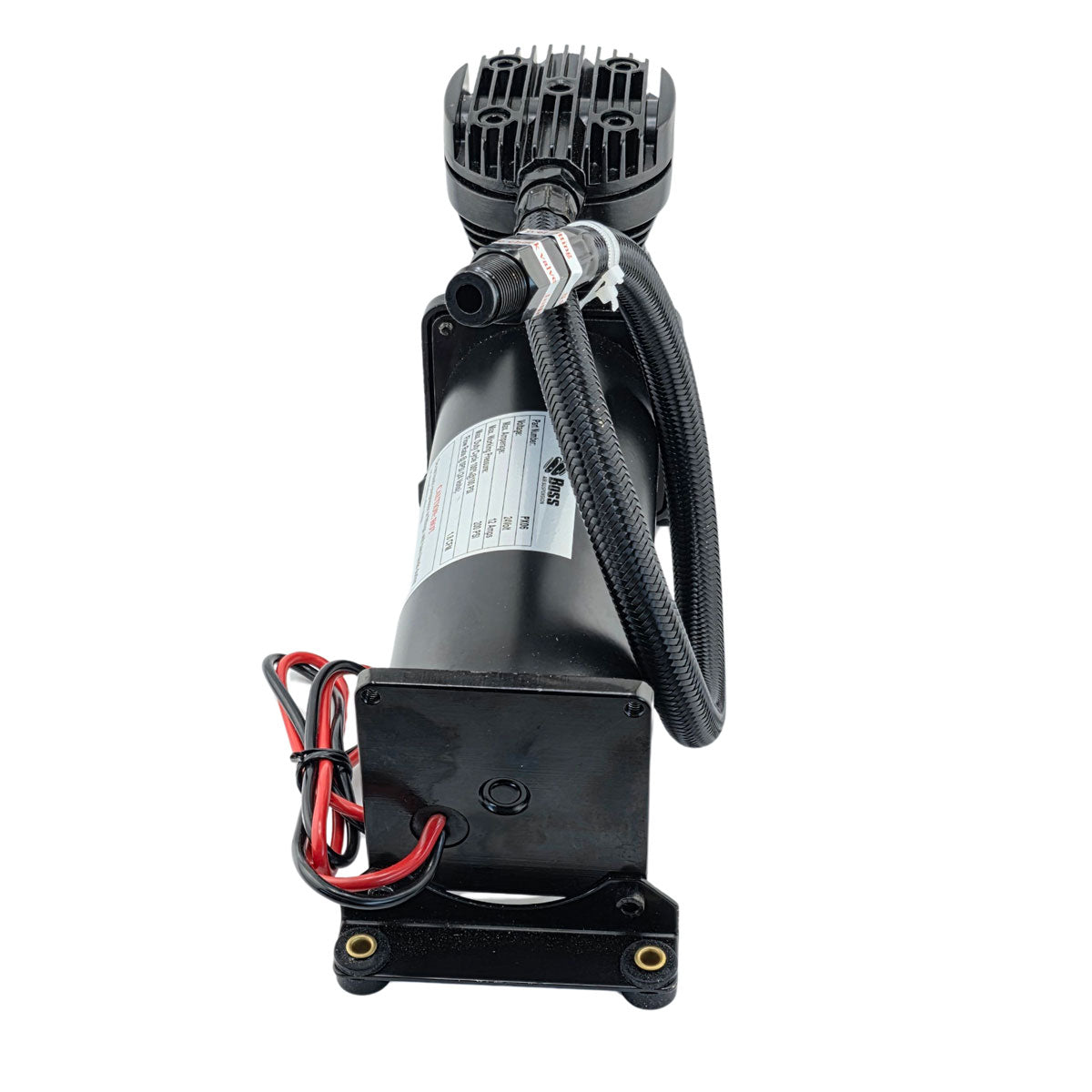

PX06 12V Air Compressor Clearance

PX06 12V Air Compressor Clearance

CL-COM-PX06

$240.00 AUD
$240.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

or up to 12 months interest free. Fees apply. ZIP

Out of stock

This clearance PX06 12V air compressor is a shop-use unit with slight scratches on the body. It has been tested and includes full warranty coverage.

  • PX-06 12V compressor
  • 100% duty cycle at 100 psi
  • Maximum working pressure: 200 psi
  • Output: 1.8 CFM
  • Maximum draw: 23 amps
  • Oil-less compressor for air suspension use
  • Can be mounted vertically or horizontally
  • Includes check valve and braided hose
  • Mounting centres: 85 mm wide x 225 mm long
View full details

Frequently asked questions

Which Boss compressor is best for Load Assist kits? ⌄

For Load Assist kits where you are only inflating airbags, a compact compressor like the Boss PX01 is usually ideal. It is sized to adjust bag pressure without the need for a large tank and is simple to install.

What if I want to inflate tyres or run air tools as well? ⌄

If you want to inflate tyres or use air for other purposes, you will need an air tank and a larger compressor with a longer duty cycle, such as the PX06 or the heavy-duty PX07. These compressors can deliver more air for longer periods without overheating.

Do I need a tank with my compressor? ⌄

For basic Load Assist airbag adjustment only, you can run a suitable compressor with or without a small tank. For ride-levelling systems, full air suspension, or frequent tyre inflation, a tank is strongly recommended so the compressor is not cycling constantly.

How should I mount a Boss compressor? ⌄

Mount the compressor on a solid surface, away from excessive heat, water splash and debris. Provide adequate ventilation around the motor and use the supplied vibration isolators. Follow the wiring instructions carefully and use the correct fuse and relay as specified.

What is the duty cycle of the PX06 compressor? ⌄

This compressor features a 100% duty cycle at 100psi, meaning it can run continuously without overheating, ideal for air suspension use.

Can the PX06 compressor be mounted in different orientations? ⌄

Yes, the PX06 compressor is oil-less and can be mounted either vertically or horizontally, allowing for flexible installation options.

What is the typical use case for the PX06 compressor? ⌄

The PX06 compressor is designed primarily for air suspension systems, providing reliable inflation and pressure adjustments for load assist applications.

What are the mounting size specifications for the PX06 compressor? ⌄

The mounting sizes for the PX06 compressor are 85mm centres wide and 225mm centres long, ensuring compatibility with various mounting setups.
