Boss Air Suspension

PX06 12V Air Compressor

PX06 12V Air Compressor

COM-PX06-12v

$270.00 AUD
$270.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

or up to 12 months interest free. Fees apply. ZIP

85 in stock

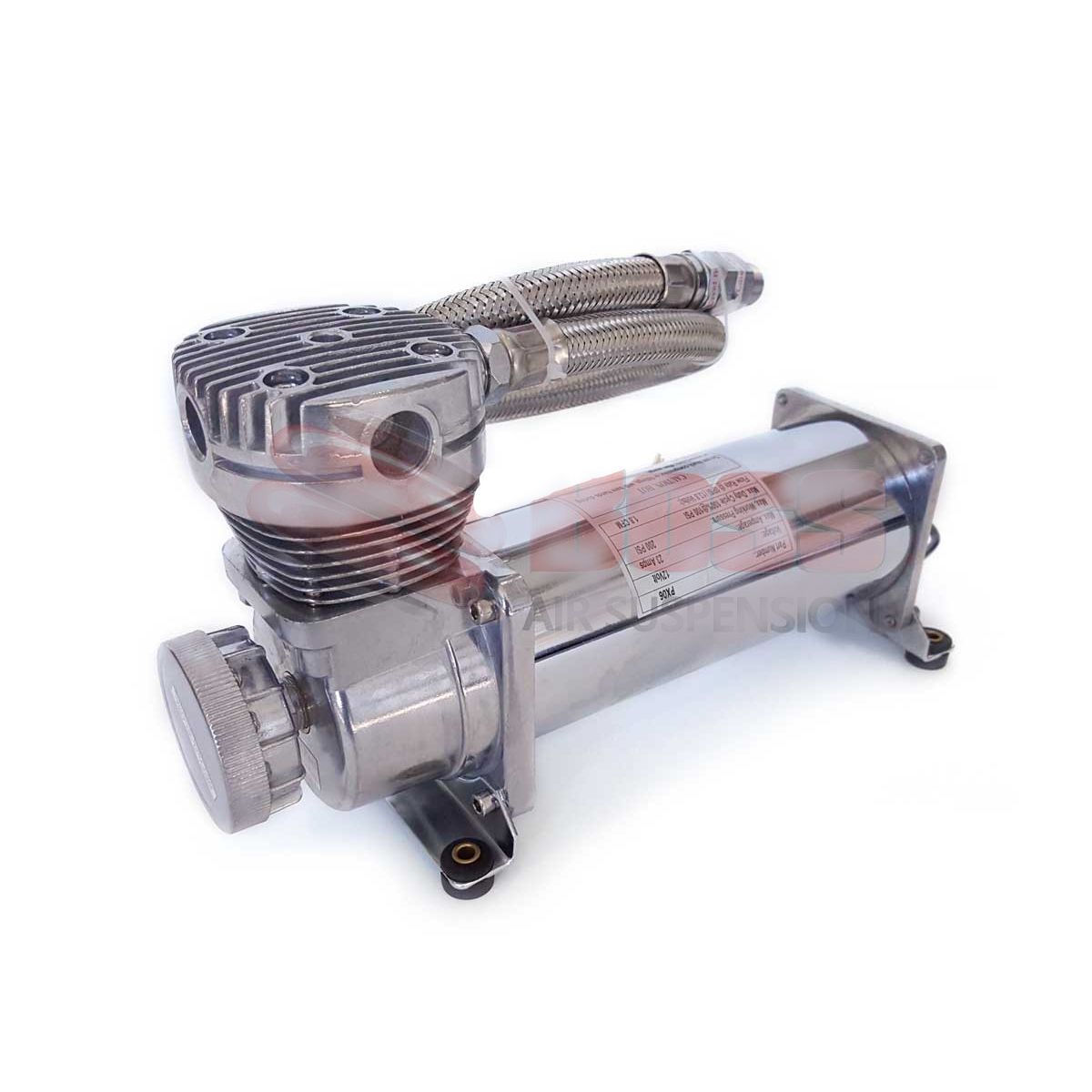

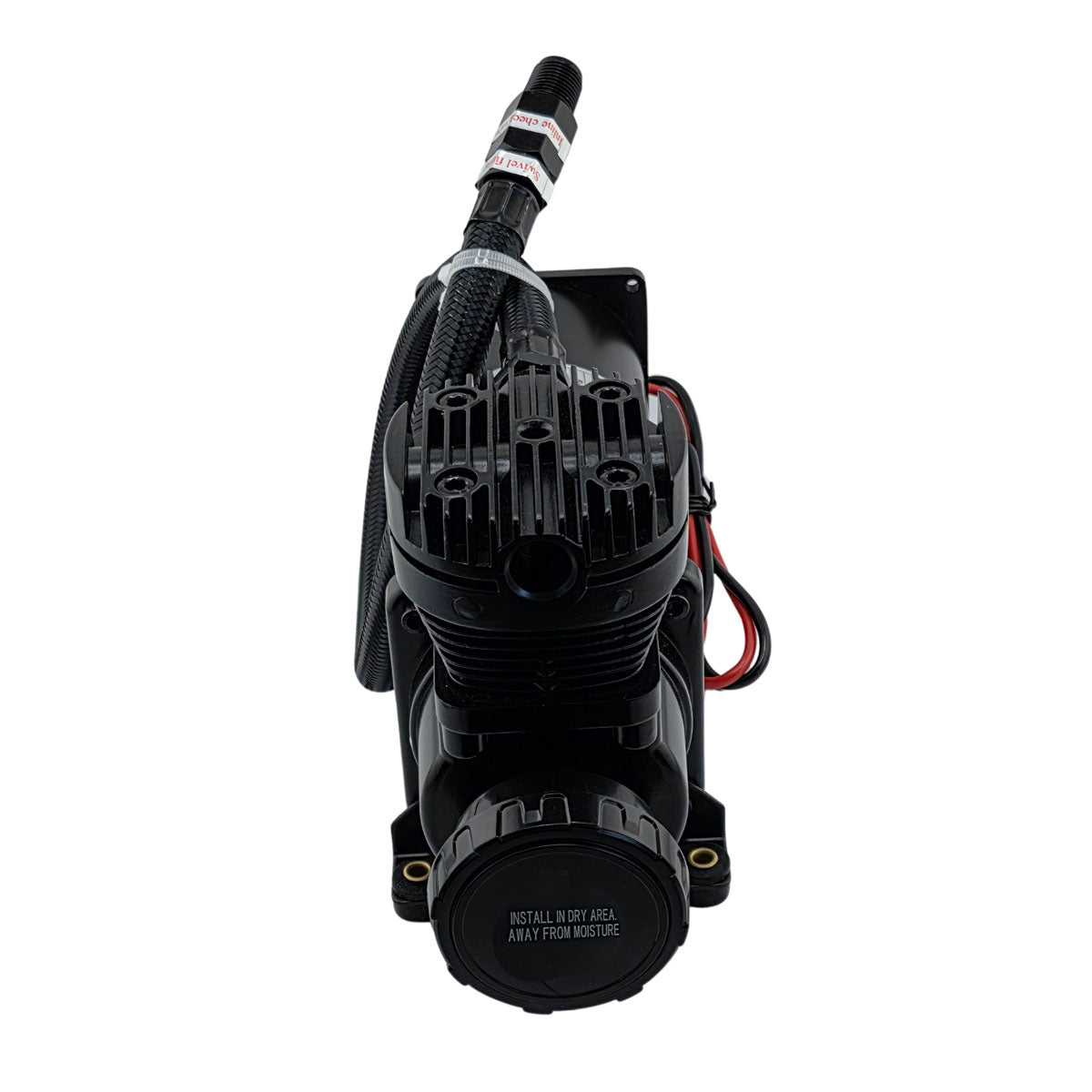

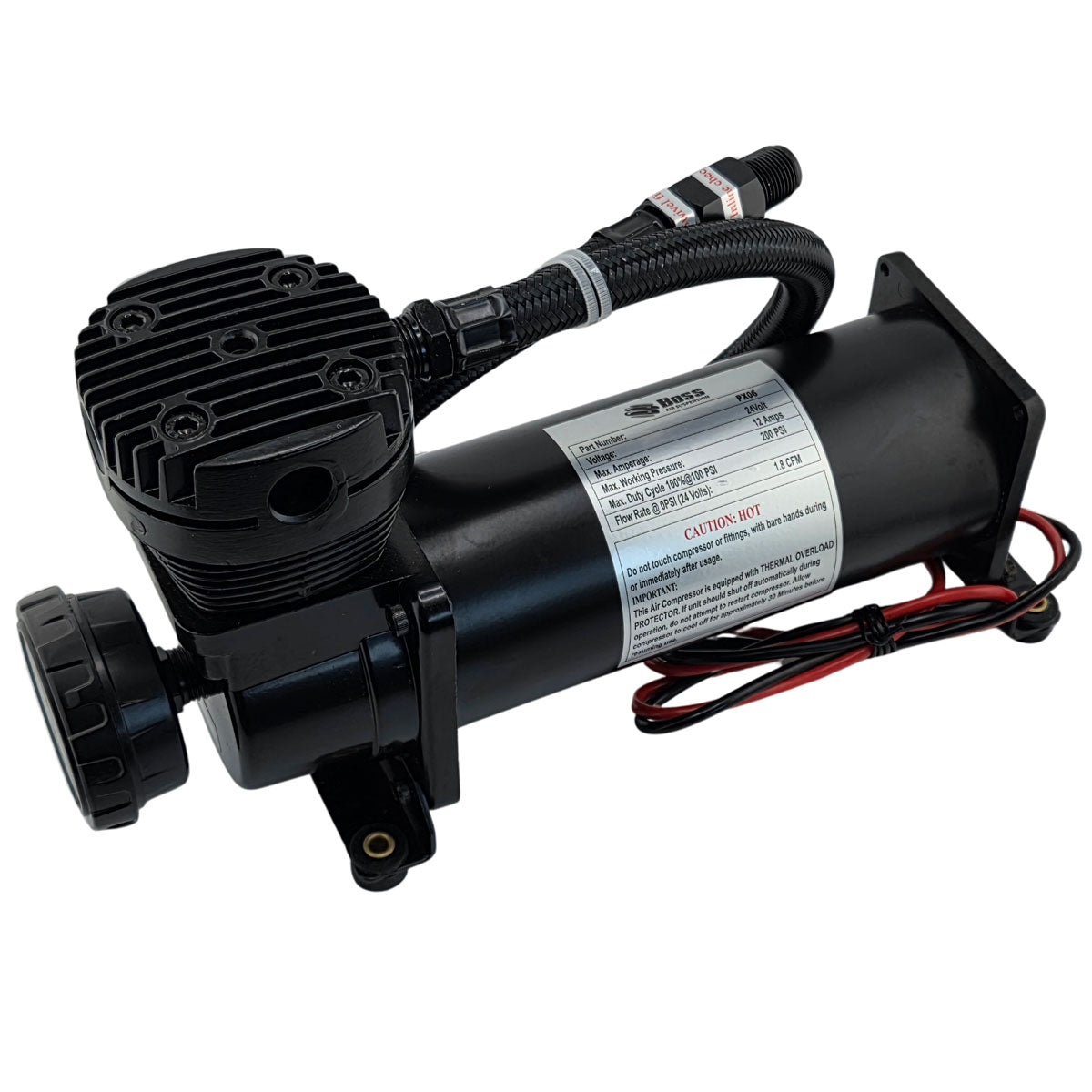

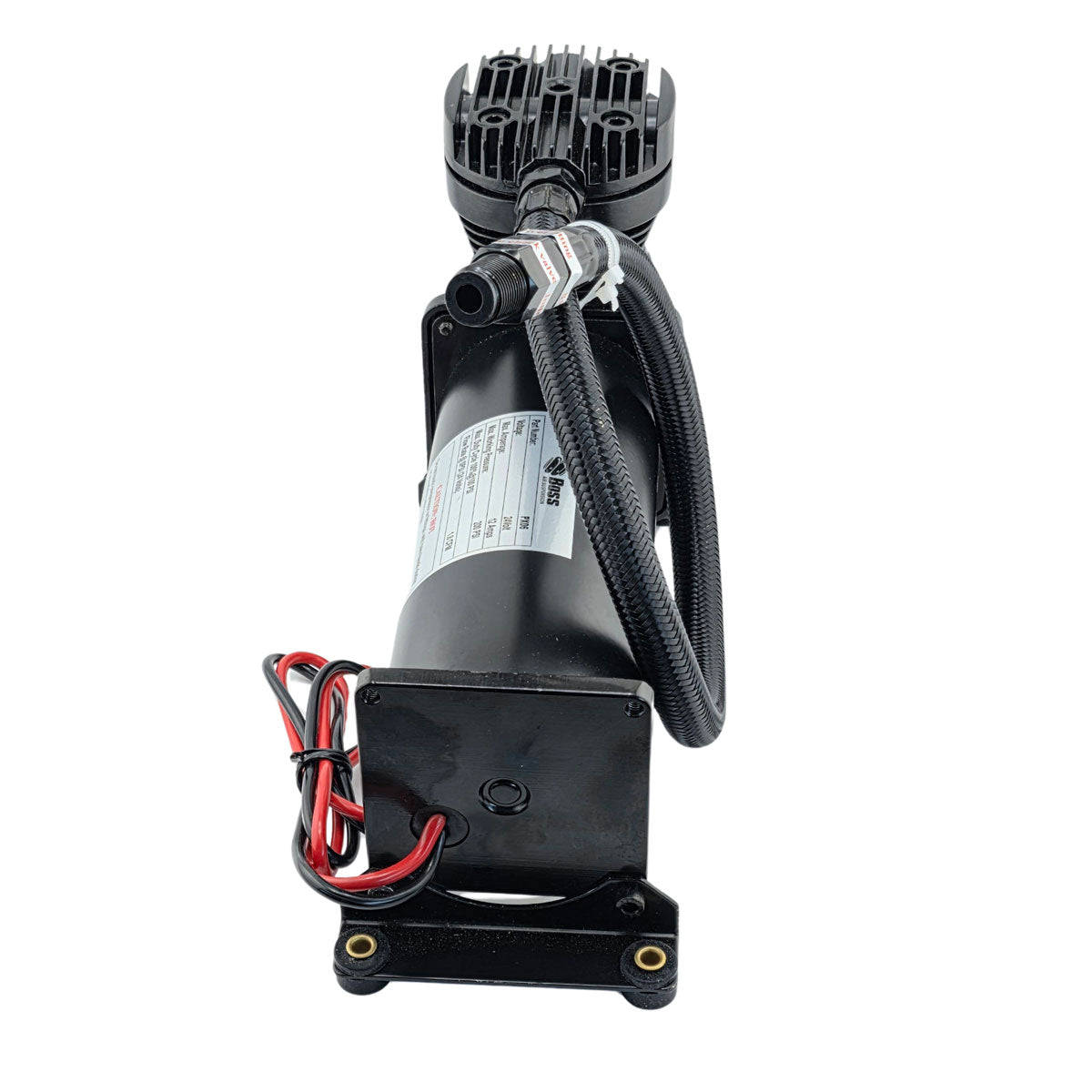

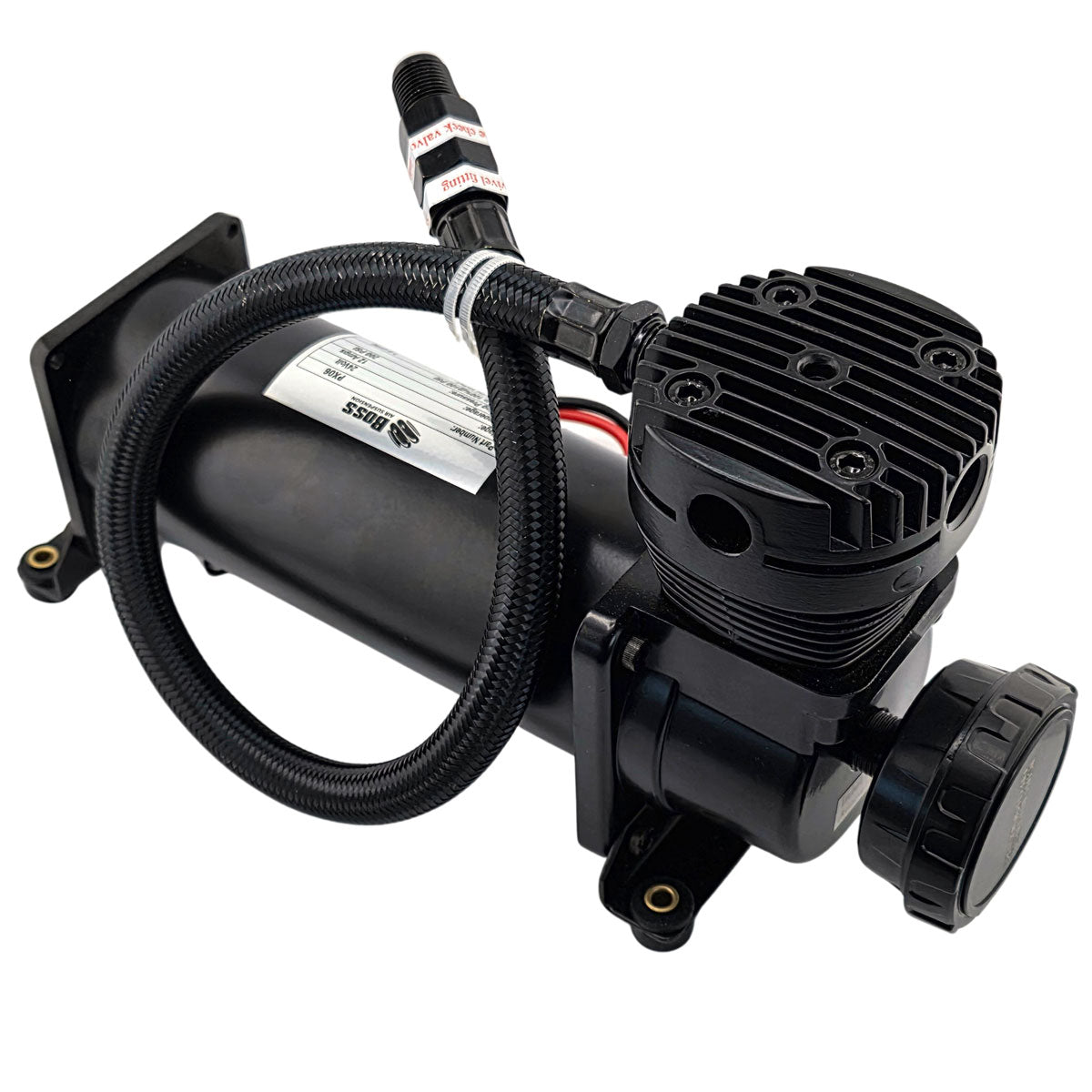

The PX06 12V air compressor is a 100% duty cycle compressor for air suspension and onboard air systems. Its oil-less design can be mounted vertically or horizontally, making it easier to fit into tight vehicle and workshop layouts.

  • PX-06 12V compressor
  • 100% duty cycle at 100 psi
  • Maximum working pressure: 200 psi
  • Output: 1.8 CFM
  • Maximum draw: 23 amps
  • Includes check valve and braided hose
  • IP56 rated
  • Compressor size: 300 mm long x 170 mm high x 100 mm wide
  • Mounting centres: 85 mm wide x 225 mm long
View full details

Frequently asked questions

Which Boss compressor is best for Load Assist kits? ⌄

For Load Assist kits where you are only inflating airbags, a compact compressor like the Boss PX01 is usually ideal. It is sized to adjust bag pressure without the need for a large tank and is simple to install.

What if I want to inflate tyres or run air tools as well? ⌄

If you want to inflate tyres or use air for other purposes, you will need an air tank and a larger compressor with a longer duty cycle, such as the PX06 or the heavy-duty PX07. These compressors can deliver more air for longer periods without overheating.

Do I need a tank with my compressor? ⌄

For basic Load Assist airbag adjustment only, you can run a suitable compressor with or without a small tank. For ride-levelling systems, full air suspension, or frequent tyre inflation, a tank is strongly recommended so the compressor is not cycling constantly.

How should I mount a Boss compressor? ⌄

Mount the compressor on a solid surface, away from excessive heat, water splash and debris. Provide adequate ventilation around the motor and use the supplied vibration isolators. Follow the wiring instructions carefully and use the correct fuse and relay as specified.

What is the maximum working pressure of the PX06 compressor? ⌄

The Boss 12 Volt Air Compressor PX06 has a maximum working pressure of 200psi, making it suitable for a variety of air suspension applications.

What is the duty cycle of the PX06 compressor? ⌄

The PX06 compressor features a 100% duty cycle at 100psi, allowing for continuous operation without overheating, which is ideal for air suspension systems that require consistent air supply.

Can the PX06 compressor be mounted in any position? ⌄

Yes, the PX06 compressor can be mounted either vertically or horizontally, providing flexibility in installation based on your vehicle's layout and space constraints.

What are the dimensions of the PX06 compressor? ⌄

The dimensions of the Boss 12 Volt Air Compressor PX06 are 300mm long, 170mm high, and 100mm wide, with mounting centres of 85mm wide and 225mm long.

What is the typical use case for the PX06 compressor? ⌄

The PX06 compressor is ideal for inflating air suspension systems, providing reliable air pressure for load assist applications, and can also be used for inflating tyres and other pneumatic tools, depending on the setup.

How does the PX06 compare to other compressors? ⌄

Compared to other compressors, the PX06 stands out with its 100% duty cycle at 100psi and robust construction, making it more suitable for demanding air suspension applications than lower-rated models.
