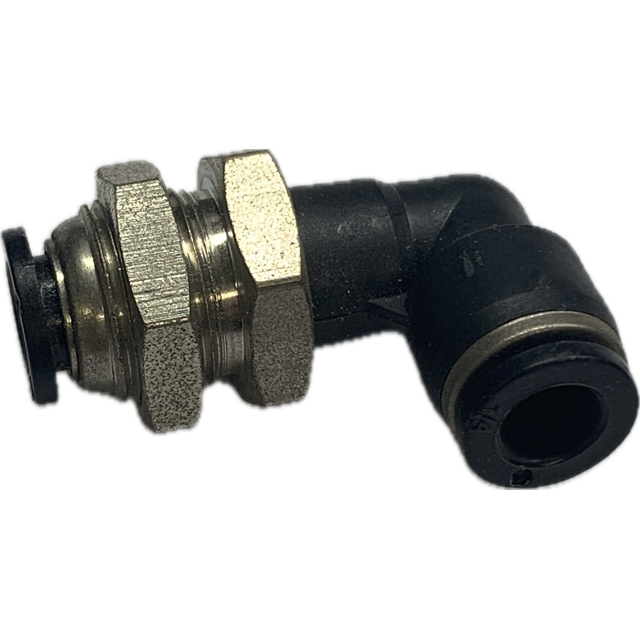

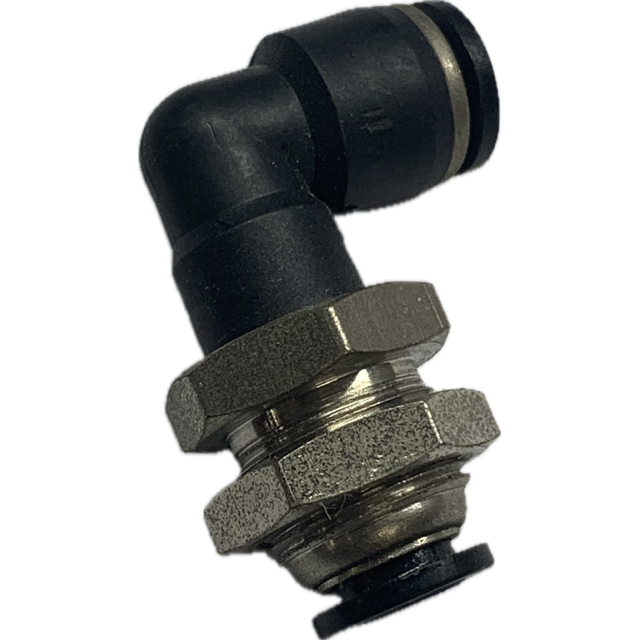

1/4 Tube 90 Bulkhead

Boss recommends using a liquid thread sealant rather than thread tape. Small fragments of thread tape can break off, travel through the airlines and lodge in valves or valve blocks, causing them to stick open or closed. A quality thread sealant seals the threads without shedding debris.

Always cut the airline square with a sharp tube cutter, not side cutters. Push the tube firmly into the fitting until it bottoms out, then pull back gently to seat the collet. Most leaks are caused by angled cuts, scratched tube, or the line not being fully inserted.

You can often reuse fittings and lines if they are in good condition, but if the tube end is scratched, oval or has been repeatedly removed, it is safer to cut back to a fresh section or replace it. Damaged tube ends are a common source of slow leaks.

The 1/4 TUBE 90 BULKHEAD is designed to facilitate the connection of air lines in your air suspension system. It allows for a smooth transition at a 90-degree angle, which is particularly useful in tight spaces where a straight fitting may not be feasible.

The 1/4 TUBE 90 BULKHEAD is made from high-quality materials designed to withstand the pressures of air suspension systems. Its robust construction ensures durability and reliability, making it a long-lasting component in your setup.

While primarily designed for air suspension systems, the 1/4 TUBE 90 BULKHEAD can be used in any application that requires a 90-degree connection for 1/4 inch tubing, such as pneumatic systems and other air-related setups.

The 1/4 TUBE 90 BULKHEAD is rated for high-pressure applications, ensuring it can handle the demands of air suspension systems. For specific pressure ratings, please refer to the product specifications or contact Boss Air Suspension directly.

Installation of the 1/4 TUBE 90 BULKHEAD is straightforward. Ensure that the tubing is cut squarely and fully inserted into the fitting. It is recommended to use a liquid thread sealant on threaded connections to prevent leaks. Always check for proper alignment to avoid stress on the fitting.

Using a 90-degree fitting like the 1/4 TUBE 90 BULKHEAD allows for more flexible routing of air lines, especially in confined spaces. This can help reduce the risk of kinks in the tubing, ensuring a consistent air flow and maintaining the efficiency of your air suspension system.
