RAM 1500 Load Assist Kit: 2026 Buying Guide & Verdict

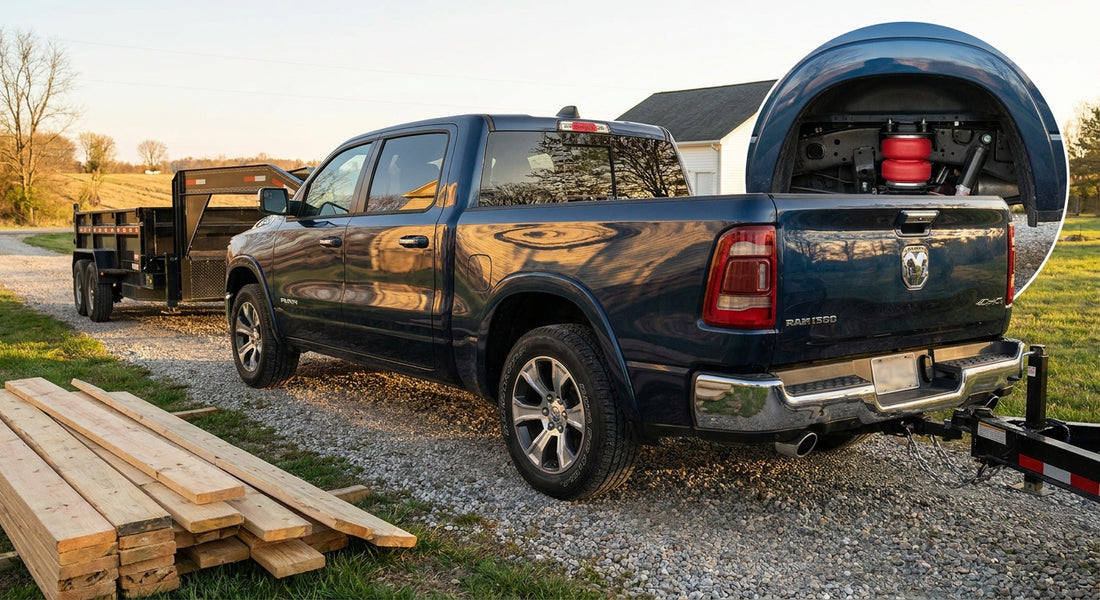

A load assist kit for a RAM 1500 adds a pair of air-adjustable bags to the existing rear leaf springs, helping the ute sit level when it's loaded up or hooked to a heavy trailer.
- The Boss load assist kit for RAM 1500 DS/DT (2009+) suits vehicles with up to a 2-inch lift — buy it for towing and load support.
- Look for vehicle-specific brackets, not universal clamps, or installation takes longer and fitment suffers.
- A digital or auto pressure controller is worth adding in 2026 if you tow often — it removes the guesswork on air pressure.
- Don't confuse a RAM 1500 load assist kit with the coil assist kit built for RAM 2500 — the chassis and spring type are different.
Why this matters
The RAM 1500's rear leaf springs are tuned for an unloaded ute, not a full tow ball weight or a tray stacked with gear. Once you add a caravan, boat or a load of building material, the rear end sags, the headlights point at the sky, and steering feel gets vague.
A load assist kit for the RAM 1500 works with the factory leaf springs rather than replacing them. Air pressure in the bags is adjustable, so you run soft pressure unladen and wind it up when the load goes on. It's a load assist system, not a GVM upgrade — it improves ride height and stability under load, it doesn't increase the vehicle's legal payload or towing capacity unless a separately approved GVM upgrade says otherwise.
Who this is for
This guide is for RAM 1500 owners who regularly tow a caravan, boat or enclosed trailer, or who carry heavy gear in the tray or bed on a routine basis. If your RAM 1500 sags at the rear with a loaded tow ball or a full tray, and you want a bolt-on fix rather than a spring swap, a load assist kit is the more practical route in 2026.
It's also relevant if you've noticed uneven headlight aim, wandering steering at highway speed while towing, or the rear tyres sitting closer to the guards than they should under load.
What to look for in a load assist kit for a RAM 1500
Vehicle-specific fitment for the DS/DT chassis
The RAM 1500 sold in Australia is the DS/DT generation, and mounting points, spring geometry and bracket angles are specific to that chassis. A kit engineered for the DS/DT from 2009 onwards bolts to the existing mounting points without drilling or spring modification. Generic or universal kits often need extra brackets or spacers, which adds install time and introduces more points that can leak or work loose.
Compatibility with your ride height
If your RAM 1500 runs a suspension lift, that changes the geometry the airbag has to work within. The Boss kit for this vehicle is built for standard height and lifts up to 2 inches — check your actual lift height before ordering, because a kit rated for one lift range won't sit correctly outside that range.
Bellow design and travel
Double-bellow (convoluted) airbags give more usable travel than a single bellow, which matters when you're running low pressure unladen and high pressure loaded. More travel means the bag isn't working near its limit at either end of the pressure range, which extends service life.
Adjustable air pressure range
A load assist kit only helps if you can actually change the pressure to match the load. Confirm the kit ships with valve stems or fittings that let you air up and down easily, whether that's with a hand pump, a 12V compressor, or a fitted onboard system.
Onboard air management
Running to each valve stem with a hand pump works, but it gets old fast if you tow every second weekend. An in-cab pressure controller or a digital inflation kit lets you adjust both bags from the driver's seat, which matters more the more often you load and unload.
Warranty and local support
Air suspension is a durability product — you want backup if a bag doesn't hold pressure two years in. Boss Air Suspension backs its load assist kits with a five-year warranty and Australian-based product support, so fitment questions and warranty claims don't involve overseas shipping delays.
“If the rear tray sits closer to the guards than the front with a full load, the standard leaf springs are already doing all the work they can.”
Top picks for RAM 1500 owners
The vehicle-specific pick: Boss Load Assist Kit for RAM 1500 (DS/DT, 2009+, up to 2-inch lift)
This is the kit built specifically for the RAM 1500 DS/DT, covering model years from 2009 onward with a lift height of up to 2 inches. It includes the airbags, mounting brackets, air lines and fittings needed for a bolt-on installation without spring changes.
Why it matters for this vehicle: the brackets are matched to the RAM's factory leaf spring mounts, so there's no drilling and no guesswork on bracket angle. Buy if your RAM 1500 matches the DS/DT platform and sits at standard height or up to a 2-inch lift.
The in-cab convenience pick: Boss Auto Pressure Controller Kit with PX06 Compressor
This pressure controller kit pairs a PX06 compressor with a 9-litre tank, water trap, fittings and a Nitto coupling, so both airbags can be adjusted from inside the cab instead of crawling underneath with a hand pump.
For a RAM 1500 that tows most weekends, this removes the friction that stops people from actually adjusting pressure for each load — which is the whole point of a load assist system. Buy if you tow or load up often enough that manual pumping has become a chore.
The budget digital pick: Digital Airbag Inflation Kit with PX01 Compressor
This digital inflation kit gives you a smaller PX01 compressor and a digital in-cab controller, at a lower cost than the full tank-and-controller setup. It's a step up from manual pumping without the full onboard air package.
For occasional towers who still want in-cab control, this is the more affordable route. Consider it if you tow a few times a year rather than weekly and don't need a full onboard air tank for other uses.
What to skip: RAM 2500 coil assist kits
Boss also supplies a coil assist kit built for the RAM 2500, which uses a coil spring rear end rather than the RAM 1500's leaf springs. It's a different product for a different chassis, and fitting it to a RAM 1500 isn't correct. Skip this one for a RAM 1500 — it's simply not the right product for this vehicle.
What to avoid
- Universal-fit airbag kits not matched to the DS/DT chassis. They may physically fit with enough fabrication, but bracket angles that aren't matched to the RAM 1500's leaf spring geometry put uneven load on the bellows and shorten service life.
- Running one fixed pressure regardless of load. Air pressure needs to change between unladen and fully loaded driving — leaving the bags at highway touring pressure while empty rides harsh and wears the bellows unevenly.
- Ignoring the lift height rating. A kit rated for standard height to 2 inches won't seat correctly on a RAM 1500 with a larger lift, and forcing the fitment risks bracket stress and premature bellow wear.
Verdict comparison table
| Pick | Fitment | Control method | Best for | Verdict |
|---|---|---|---|---|
| Load Assist Kit for RAM 1500 (DS/DT 2009+) | Standard height to 2-inch lift | Manual valve stem or add-on controller | Weekend towers and load carriers | Buy |
| Boss Auto Pressure Controller with PX06 | Fits alongside the load assist kit | In-cab digital/analogue control, 9L tank | Frequent towers wanting full onboard air | Buy |
| Digital Airbag Inflation Kit with PX01 | Fits alongside the load assist kit | In-cab digital control, smaller compressor | Occasional towers on a tighter budget | Consider |
| RAM 2500 Coil Assist Kit | RAM 2500 coil-spring rear end only | N/A for RAM 1500 | RAM 2500 owners, not RAM 1500 | Skip |
FAQ
What's the best load assist kit for a RAM 1500?
For the RAM 1500 DS/DT built from 2009 onward with standard height or up to a 2-inch lift, the vehicle-specific Boss load assist kit is the correct match because its brackets are designed for that chassis. Confirm your exact lift height before ordering since kits are rated to specific ranges.
Does a load assist kit increase my RAM 1500's towing capacity?
No. A load assist kit improves ride height, stability and load-carrying comfort by working with the existing leaf springs, but it does not increase the vehicle's legal payload, GVM or towing capacity. Only an approved GVM upgrade with supporting documentation can do that.
Can I fit a RAM 1500 load assist kit myself?
The kit is designed as a bolt-on installation using the vehicle's existing mounting points, which suits a competent DIY installer with basic tools. If you're unsure about bracket positioning or air line routing, a suspension workshop can complete the fitment.
Is a coil assist kit the same as a load assist kit for a RAM 1500?
No. Coil assist kits are built for vehicles with coil spring rear suspension, such as the RAM 2500, while the RAM 1500 uses leaf springs and needs a leaf-spring-compatible load assist airbag kit. Fitting the wrong type isn't a straightforward swap.
What air pressure should I run in a RAM 1500 load assist kit?
Pressure depends on the load being carried at the time, and most owners run a lower pressure unladen and increase it when towing or carrying weight. Check the kit's documentation or contact Boss Air Suspension's technical support for a pressure range suited to your specific load.
Do I need an onboard compressor with a load assist kit?
A compressor isn't required — the bags can be adjusted with a hand pump — but an in-cab controller or compressor makes it far easier to adjust pressure every time the load changes. This matters more for owners who tow frequently in 2026 than for occasional users.
How long does a RAM 1500 load assist kit last?
Boss Air Suspension backs its load assist kits with a five-year warranty, reflecting the expected service life under normal towing and load-carrying use. Actual longevity depends on how consistently pressure is matched to load and how the vehicle is used.
One last thing
The detail most RAM 1500 owners miss isn't the kit itself, it's the lift height check. A kit rated for standard height to a 2-inch lift won't seat the same way on a vehicle outside that range, and that's the single most common fitment question Boss Air Suspension gets asked about this ute in 2026. Measure before you order, not after.
