Wireless Remote Airbag Inflation Kit Wiring Guide 2026
Wiring a wireless remote airbag inflation kit wrong is the single biggest cause of no-start compressors, flat batteries and unreliable inflation on load assist systems in 2026 — and most of the mistakes come down to three connections done in the wrong order. This guide walks through the wiring sequence step by step so the kit works first time and keeps working for years.
- Wireless remote airbag inflation kit wiring follows five fixed steps: power, ground, compressor, receiver, then air line — skip the order and the remote won't pair.
- A fused feed straight off the battery, not a fuse box tap, is the single most common fix for compressors that cut out under load.
- Boss Air Suspension's PX01 3-button digital air controller kit and the Impressor digital incab kit both use the same core wiring principles covered here.
- Test the wireless remote from inside and outside the cab before buttoning up the install — range issues show up immediately, not after 12 months.
Why this matters
A wireless remote airbag inflation kit lets you adjust load assist airbag pressure from the cab or from outside the vehicle without crawling underneath with an air hose. That's useful when you're hitching a caravan, loading a canopy with tools, or setting ride height before a long tow in 2026.
The wiring is what makes or breaks the system. Get the power feed wrong and the compressor drops out under load. Get the ground wrong and the digital controller reads inconsistent pressure. Miss the pairing step and the wireless remote simply won't talk to the receiver.
Boss Air Suspension's PX01 3-button digital air controller kit and the Impressor digital incab 3-button kit both use a similar wiring sequence, so the process below applies whether you're running a Boss Air Suspension controller or another wireless inflation system on a load assist airbag setup.
What you'll need

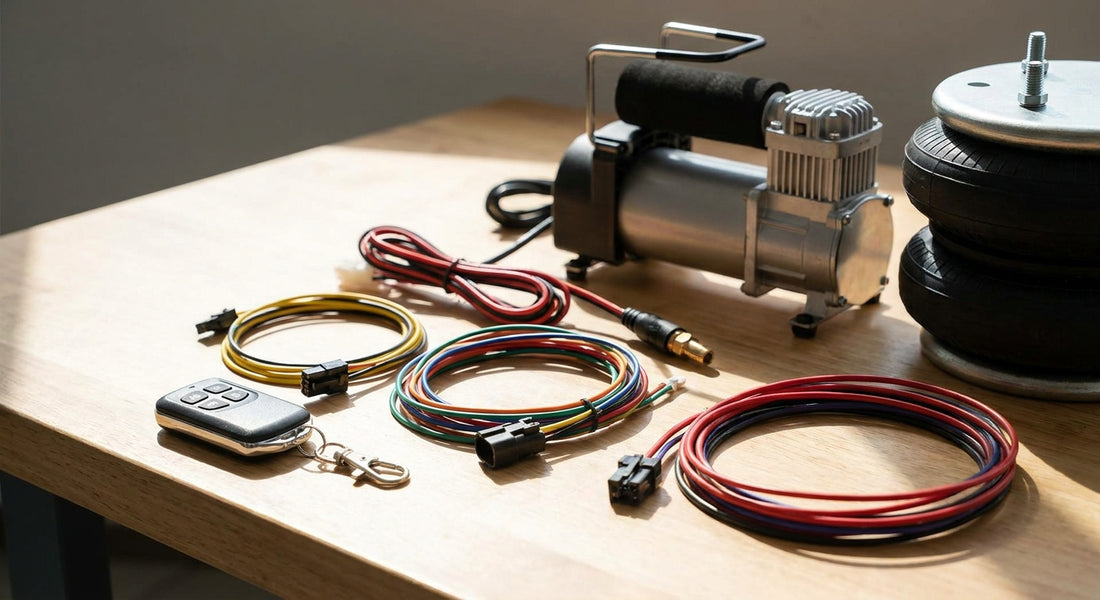

- Wireless remote airbag inflation kit (compressor, receiver/controller, remote fob or app pairing hardware)
- Load assist airbags already fitted and pressurised to a safe minimum
- Ring terminals, heat-shrink connectors and a crimping tool
- An appropriately rated fuse and fuse holder for the compressor feed
- Wire loom or split conduit to protect runs through the chassis and firewall
- A test light or multimeter to confirm polarity before final connections
- An airbag fitting kit if you need extra push-in fittings, tee pieces or airline for the run between the compressor and the airbags
- 30 to 60 minutes for a straightforward install, longer on vehicles with tight cabin access
If your kit came with a printed wiring diagram, follow that diagram over any general guidance here — the exact terminal layout can differ between compressor and controller models.
The steps
Step 1: Plan the wiring path before you cut anything
Decide where the compressor, receiver and any incab switch panel will sit before touching a tool. Most installs run power from the battery, through the firewall, to a compressor mounted in the engine bay or under the tray, then back to a receiver mounted in the cab.
Map the shortest practical route that avoids moving parts, exhaust heat and sharp chassis edges. A poorly planned route is the most common reason wiring gets chafed and fails within the first 12 months.
Common mistake: running the power cable alongside factory wiring looms without protection — vibration wears through insulation over time.
Step 2: Run a fused power feed from the battery
Connect the positive lead directly to the battery, not to an accessory fuse box, so the compressor gets full unrestricted current under load. Fit an appropriately rated fuse as close to the battery terminal as possible — this protects the entire wiring run if a short develops further down the vehicle.
Use wire rated for the compressor's draw and keep the fused link within roughly 150mm of the battery terminal. This is standard 12V wiring practice for onboard air and load assist systems, not a Boss-specific spec, so confirm the exact fuse rating against the wiring diagram supplied with your kit.
Common mistake: tapping power from an ignition-switched accessory circuit that can't handle compressor start-up current, causing nuisance fuse blows.
Step 3: Run and secure the earth (ground) connection
Bolt the earth lead to a clean, bare metal chassis point close to the compressor — paint, rust or grease under the ring terminal is the number one cause of inconsistent pressure readings on digital controllers. Scuff the mounting point back to bare metal and use a star washer to bite through any residual coating.
A poor earth doesn't always stop the compressor from running, but it will cause erratic pressure readouts and intermittent wireless dropouts, which is often misdiagnosed as a remote fault.
Common mistake: earthing to a painted bracket or plastic-mounted panel instead of structural chassis metal.
Step 4: Wire the compressor through a relay
Most wireless remote airbag inflation kits use a relay to switch the compressor rather than running full current through the receiver's internal switching. Wire the relay's control side to the receiver's low-current output, and the relay's high-current side directly between the fused battery feed and the compressor.
This keeps heavy current away from the receiver's internal circuitry, which extends the life of the controller and reduces the chance of overheating during repeated inflation cycles — useful if you're airing up regularly for towing changeovers.
Common mistake: wiring the compressor straight to the receiver without a relay, which shortens the life of the controller under repeated use.
Step 5: Mount and wire the receiver or incab controller
Mount the receiver or digital controller somewhere accessible in the cab, away from direct sun and away from the footwell where it can get wet. Connect the receiver's power and ground leads, keeping polarity correct — reversed polarity is a common reason a brand-new controller appears dead on first power-up.
Route the wiring loom through an existing firewall grommet where possible rather than drilling a new hole. If you do need a new hole, seal it with a rubber grommet to stop water and dust entering the cabin.
Common mistake: mounting the receiver where it's exposed to direct sunlight for long periods, which can affect display readability and long-term reliability.
Step 6: Pair the wireless remote
With power connected, follow the kit's pairing sequence — most digital air controller kits use a button-hold sequence on both the remote and the receiver to sync them. Confirm the pairing indicator (usually an LED or display confirmation) before closing anything up.
Test the remote from inside the cab, then step outside the vehicle and test again from a few different positions. Range and reliability issues are far easier to fix now than after the dash is back together.
Common mistake: skipping the outside-vehicle test and only confirming pairing from the driver's seat.
Step 7: Connect the air line and test under real conditions
Run airline from the compressor outlet to the airbag manifold or tee fittings, using push-in fittings from your fitting kit where the factory line doesn't reach. Cycle the system through a full inflate and deflate before loading the vehicle, checking for leaks at every fitting with a soapy water spray.
Once the system holds pressure with no audible leaks, load the vehicle to a realistic towing or carrying weight and confirm the compressor cycles smoothly and the remote still responds. Load assist airbags on most vehicle-specific kits run in a wide pressure range depending on load, so refer to your kit's fitment guide for the correct range for your vehicle before finalising the install.
Common mistake: declaring the job finished after a bench test with no load on the vehicle, then discovering a leak or a wiring fault on the first loaded trip.
Troubleshooting
- Compressor won't run at all: check the fuse first, then confirm the relay's control side is receiving power from the receiver when a signal is sent.
- Remote pairs but range is poor: reposition the receiver away from metal panels or other electronics, and re-test — receiver placement affects wireless range more than most installers expect.
- Pressure readout jumps around: re-check the earth connection for corrosion or paint under the ring terminal before assuming the sensor is faulty.
- Compressor runs but airbags don't inflate: check for a kinked or disconnected airline between the compressor and the manifold before suspecting an electrical fault.
- Fuse blows repeatedly: this usually means the compressor is drawing more current than the fuse is rated for, or there's a short in the wiring loom — don't jump to a higher-rated fuse without finding the cause.
- Controller powers on but won't hold a program or setting: confirm the ground connection is solid; intermittent grounds often present as memory or setting faults rather than obvious power loss.
Tools and resources
- Crimping tool and heat-shrink connectors for weatherproof joins
- Multimeter or test light for confirming polarity before final connections
- Airbag fitting kit for extra push-in fittings and airline
- The wiring diagram supplied with your specific PX01 3-button or Impressor digital incab kit
- Soapy water spray bottle for a simple leak test on completed airline connections
What to do next
Once the wiring and airline are sorted, the next decision is how the digital air controller integrates with your ride height setup — particularly if you're running a lifted vehicle or adjusting pressure regularly for different loads. The guide on installing a digital air controller for ride height covers that next step in more detail.
FAQ
What's the best way to power a wireless remote airbag inflation kit?
Run a fused feed directly from the battery rather than an accessory fuse box. This gives the compressor unrestricted current under load and is standard practice for onboard air and load assist systems in 2026.
Is a relay necessary when wiring a compressor to a wireless receiver?
Yes, most kits are designed to switch the compressor through a relay rather than the receiver's internal circuitry. This keeps heavy current off the low-current controller and extends its working life.
How much does a wireless remote airbag inflation kit cost to wire correctly?
The kit itself is the main cost; wiring materials such as fuse holders, ring terminals and loom typically add a small amount on top if you don't already have them on hand. Labour time is usually 30 to 60 minutes for a straightforward install.
Why won't my wireless remote pair with the receiver?
Pairing failures are usually caused by an incorrect button-hold sequence or a receiver that isn't getting power. Recheck the power and ground connections first, then repeat the pairing sequence exactly as described in the kit's instructions.
Can I earth the receiver to a painted bracket?
No, earth connections need to be on bare, clean chassis metal. Painted or corroded mounting points cause inconsistent pressure readings and intermittent wireless dropouts.
Is the Boss Air Suspension PX01 kit different to wire than other digital air controllers?
The core wiring sequence — power, ground, compressor relay, receiver, airline — is consistent across most digital inflation kits. Always follow the specific wiring diagram supplied with your PX01 or Impressor kit for exact terminal details.
Does a wireless remote airbag inflation kit affect legal payload or GVM?
No, a load assist airbag system with a wireless controller adjusts ride height and rear suspension support — it does not increase legal payload, GVM or towing capacity unless fitted as part of an approved GVM upgrade.
How do I test a wireless remote airbag inflation kit after wiring it?
Cycle the system through a full inflate and deflate with no load, check every fitting for leaks with soapy water, then repeat the test with a realistic towing or carrying load before considering the install finished.
One last thing
Most wiring faults on wireless remote airbag inflation kits trace back to the earth connection, not the compressor or the receiver — a five-minute check with a wire brush on the chassis mounting point before final assembly saves far more diagnostic time later than any other step in this guide.
