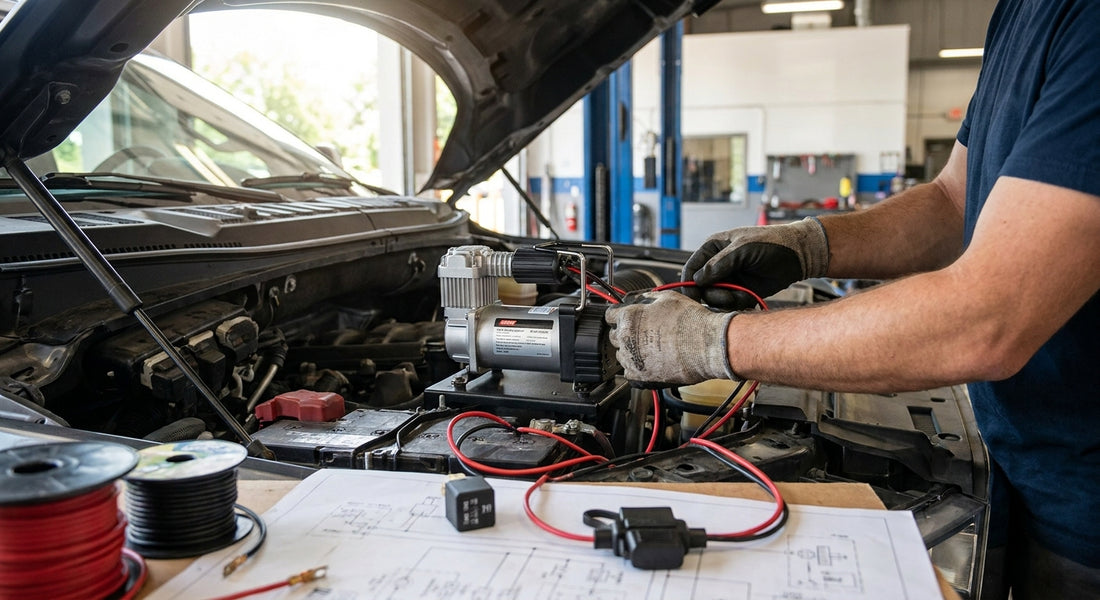

How to Wire a 12V Air Compressor for Onboard Air (2026)
Wiring a 12V air compressor incorrectly is the fastest way to blow a fuse, cook a relay, or leave your onboard air system dead when you need it most on a remote track in 2026. This guide walks through the wiring steps Boss Air Suspension recommends for a reliable, protected circuit — from battery to compressor to pressure switch.
- Wiring a 12v air compressor safely means a relay, an inline fuse near the battery, and correctly sized wire — not a direct switch feed.
- Most 12V onboard compressors draw 15-25 amps under load, so 8 AWG wire and a 30A relay are the safe minimum for 2026-spec units.
- A pressure switch or Boss Auto Pressure Controller cuts run time automatically and protects the compressor from overheating.
- Ground the compressor straight to chassis, never through existing wiring, to stop voltage drop killing cut-out pressure.
- The PX01 12V air compressor is a straightforward Buy for owners wiring a manual onboard air setup themselves.
Why this matters
A 12V air compressor pulls a serious current spike on startup, then holds a steady draw while it fills a tank or airs up a tyre. Undersized wire or a missing relay is the single most common reason onboard air installs fail within the first few months.
Get the circuit right once and the compressor will run for years without drama. Get it wrong and you'll be chasing intermittent faults, blown fuses, or a compressor that never quite reaches cut-out pressure.
Boss Air Suspension sees the same wiring mistakes repeated across 4WD and ute installs: switches wired direct to the compressor with no relay, wire gauge picked by guesswork, and grounds tapped off existing loom wiring instead of straight to chassis.
What you'll need
- A 12V air compressor rated for onboard air duty, such as the PX01 12V air compressor
- An automotive relay rated at 30A or higher
- An inline fuse holder and fuse matched to the compressor's rated draw plus headroom
- 8 AWG (or heavier) tinned copper wire for the main feed, with lighter gauge for the trigger circuit
- A pressure switch or digital controller for automatic cut-off
- Ring terminals, heat-shrink connectors and a chassis ground point
- A basic airbag fitting kit if you're combining the compressor with a load assist airbag setup
- A multimeter to check voltage drop once wired
The steps
1. Plan the circuit before you cut any wire
Sketch the run from battery to relay to compressor before touching a crimper. Every onboard air compressor should run through a relay, not a direct switched feed — the switch only carries a small trigger current, while the relay carries the full load.
Skipping the relay means the dash switch and its wiring carry the compressor's full draw, which overheats switches and melts connectors over time. Plan the mounting position too: compressors run hotter than most owners expect, so keep them away from exhaust heat and standing water.
Common mistake: running the compressor straight off a cigarette lighter socket or an existing accessory circuit. Neither is rated for sustained compressor draw.
2. Choose wire gauge and run the main feed
Most 12V onboard compressors draw 15 to 25 amps under load, and inrush on startup runs higher for a moment. 8 AWG wire is the safe minimum for main feed runs under three metres; step up a size for longer runs to limit voltage drop.
Run the positive feed from the battery, through the fuse, to the relay's high-current terminal, then on to the compressor. Keep this cable away from sharp edges and moving parts, and secure it every 300-450mm.
Expected outcome: a clean, straight feed with no splices between battery and relay.
3. Install the fuse within 300mm of the battery
The fuse protects the wire, not the compressor, so it has to sit close to the power source — within 300mm of the battery terminal is the standard rule. If a short develops anywhere along that main feed, the fuse has to blow before the wire insulation melts.
Match the fuse rating to the wire gauge and the compressor's actual draw, not a round number picked at random. Undersized fuses nuisance-trip on startup; oversized fuses defeat the point of having one.
Common mistake: mounting the fuse holder near the compressor instead of the battery, which leaves the entire main feed unprotected.
4. Wire the relay and trigger circuit
The relay's two small terminals form the trigger circuit — one goes to a switched 12V source (ignition or a dash switch), the other to chassis ground. The two large terminals carry the compressor's full load: one from the fused battery feed, the other out to the compressor itself.
Use a lighter gauge wire for the trigger side since it only carries a fraction of an amp. Label both circuits clearly before you finish the loom — mixing them up is the most common relay wiring error.
Expected outcome: the relay clicks audibly when the trigger circuit is energised, and stays silent when it's off.
5. Fit a pressure switch or controller for automatic cut-off
Running a compressor with no automatic cut-off means it's on manual watch every single time — miss the cut-out point and you risk overfilling the tank or overheating the compressor. A pressure switch, or a Boss Auto Pressure Controller kit, wires into the trigger circuit and switches the compressor off once target pressure is reached.
This is the difference between a compressor you have to babysit and one that manages itself while you're airing up tyres or filling an onboard tank. Set the cut-in and cut-out points to suit your tank size and intended use.
Common mistake: wiring the pressure switch into the main load circuit instead of the trigger side, which forces it to handle current it isn't rated for.
6. Ground the compressor directly to chassis
Run a dedicated ground wire from the compressor straight to a clean, bare-metal chassis point — sand off paint or coating first and use a star washer for a solid connection. Never rely on an existing ground point shared with other accessories.
A poor ground is the classic cause of a compressor that runs slow, hot, or intermittently even when every other wire is correct. Chase down bad grounds first if the compressor underperforms after install.
Expected outcome: less than 0.2V drop measured between the battery negative and the compressor ground point under load.
7. Test under load and check voltage drop
Run the compressor to full cut-out pressure with a multimeter across the main feed. Voltage at the compressor should sit within roughly half a volt of battery voltage while running — anything more points to undersized wire, a bad connection, or a failing ground.
Check the fuse doesn't get warm to touch during a full cycle, and confirm the relay isn't buzzing or chattering. A properly wired 12V air compressor should start cleanly, run quietly, and cut out at the pressure you've set.
Troubleshooting
- Compressor cycles on and off rapidly — the pressure switch differential is set too tight. Widen the gap between cut-in and cut-out pressure.
- Compressor never reaches cut-out pressure — check for voltage drop first. Undersized wire on a long run is the usual cause.
- Fuse blows on every startup — the fuse rating is too close to the compressor's inrush current. Step up one fuse size within the wire's rated capacity.
- Relay clicks but the compressor doesn't run — trace the ground wire. A loose or corroded ground reads fine at rest but fails under load.
- Compressor runs noticeably hot — it's likely exceeding its duty cycle or mounted too close to exhaust heat. Compact 12V compressors typically top out around a 50% duty cycle before needing a rest.
- Trigger switch works but nothing downstream activates — check the small relay terminals aren't swapped with the large load terminals during wiring.
Tools and resources
- Crimping tool and heat-shrink connectors rated for automotive use
- Multimeter for voltage drop testing
- Wire strippers and a dedicated ground point on bare chassis metal
- A Boss Auto Pressure Controller kit if you want a pre-packaged pressure switch, tank and fitting solution rather than sourcing parts separately
- Reference the best air compressor pressure switch for onboard air setups guide before choosing a switch, since matching the switch to your tank size and compressor matters as much as the wiring itself
What to do next
Once the compressor is wired and tested, the next decision is tank size and mounting position, since that dictates how often the compressor cycles and how long it lasts. A compressor wired correctly but paired with an undersized tank will short-cycle constantly, which shortens its working life regardless of how clean the wiring is.
If you're setting this system up mainly for tyre inflation on 4WD trips rather than tank-fill duty, the wiring principles above still apply, but compressor selection changes.
FAQ
How do I wire a 12v air compressor safely?
Run the main feed through a relay and an inline fuse mounted within 300mm of the battery, using 8 AWG wire or heavier for compressors drawing 15-25 amps. Ground the compressor directly to chassis and use a switched trigger circuit rather than wiring the switch to carry the full load.
What size fuse does a 12v air compressor need?
Match the fuse to the compressor's rated draw plus headroom for startup inrush, not a round number picked at random. Most compact 12V compressors sit in the 20-30 amp fuse range once wire gauge and relay rating are accounted for.
Can I wire a 12v air compressor without a relay?
You can, but the switch and its wiring then carry the compressor's full load current, which overheats switches and melts connectors over time. A relay is the standard, low-cost fix and takes minutes longer to wire.
Do I need a pressure switch for an onboard air compressor?
A pressure switch or controller is strongly recommended because it stops the compressor automatically at a set pressure, protecting it from overheating and preventing overfilled tanks. Without one, the compressor has to be manually monitored every time it runs.
Why does my 12v air compressor run slow or hot?
Slow or hot running is almost always undersized wire, a poor ground connection, or exceeding the compressor's duty cycle. Check voltage at the compressor under load first — anything more than roughly half a volt below battery voltage points to a wiring fault.
What wire gauge do I need for a 12v air compressor?
8 AWG wire covers most compact 12V compressors on runs under three metres; step up a gauge for longer runs to control voltage drop. The trigger circuit to the relay can use much lighter wire since it carries only a fraction of an amp.
Should the compressor ground to existing vehicle wiring?
No — run a dedicated ground wire straight to a clean, bare-metal chassis point rather than tapping an existing ground. Shared grounds are one of the most common causes of intermittent compressor faults.
How close does the fuse need to be to the battery?
Within roughly 300mm of the battery terminal, since the fuse protects the wire run itself, not the compressor. Mounting it further away or near the compressor leaves the main feed cable unprotected against a short.
One last thing
The wiring is rarely what fails first on a 12V air compressor install — the ground connection is. Owners chase phantom electrical faults for weeks that trace back to a ground point tapped off painted metal instead of bare chassis. Sand it back, use a star washer, and check it again after the first few heat cycles once everything's bedded in.
