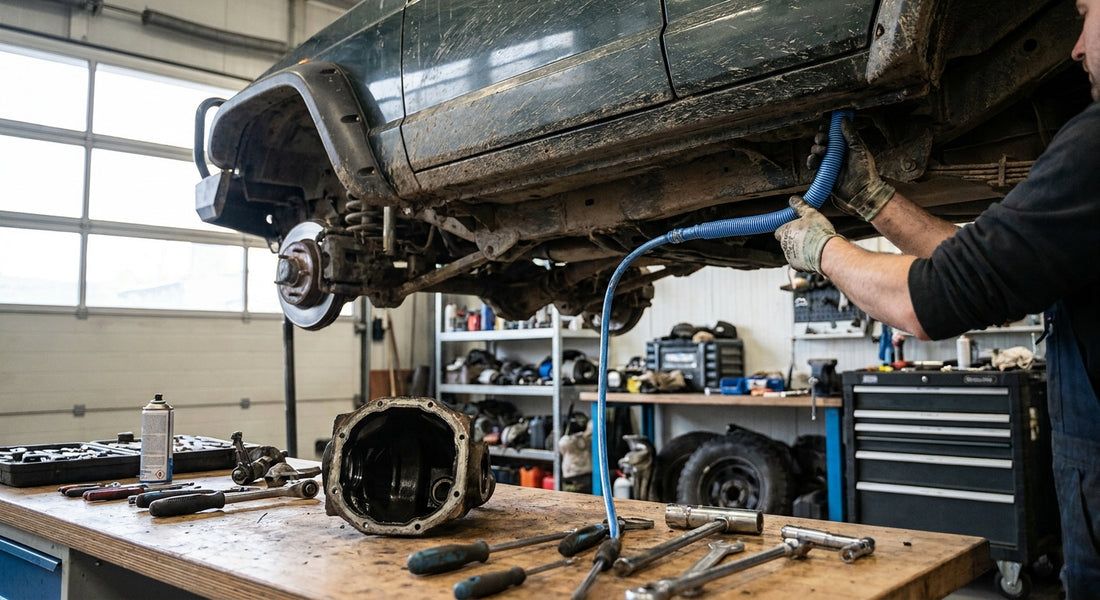

How to Install Diff Breathers on a 4WD (2026 Guide)
Water in your diffs and gearbox after a river crossing is not a maintenance quirk, it's a design gap in the factory breather setup. This guide walks through how to install diff breathers on a 4WD so the driveline breathes properly and stays dry when you're deep in water or bog.
- Installing diff breathers on a 4WD takes under an hour per axle with basic hand tools in 2026.
- Route breather hose to a high mounting point above wading depth — this is the whole point of the upgrade. Buy the kit that matches your model.
- Skip clamps under 8mm wide; they loosen under diff vibration and let water back in.
- Spray soapy water on every fitting after install to confirm an airtight diff breather seal before your next trip.
Why this matters
Factory diff and gearbox breathers sit low on most 4WDs, often only 100-200mm above the diff housing itself. When you drop into a river crossing or a deep bog hole, water pressure can push past that breather and straight into your diff oil, gearbox or transfer case.
Once water gets into a diff, it doesn't just sit there. It corrodes bearings, breaks down oil additives and can turn a $50 fitting job into a four-figure diff rebuild. Relocating the breather to a higher point on the chassis or engine bay is one of the cheapest insurance policies available for anyone who tows, tours or crosses water regularly in 2026.
This isn't an air suspension job, but it sits in the same category as the load assist and onboard air work Boss Air Suspension deals with every day — practical, vehicle-specific fixes that keep a 4WD reliable under real-world load and conditions.
What you'll need
- Diff breather kit matched to your vehicle (2-way, 3-way, 4-way or 6-way depending on how many points you're relocating)
- 10mm and 13mm spanners or a socket set
- Cable ties or P-clamps for securing hose runs
- A sharp utility knife for trimming hose cleanly
- Degreaser and a rag for cleaning fitting threads before install
- Thread sealant if your kit doesn't use factory-tapered fittings
- 30-45 minutes per axle, more if you're relocating both diffs and the gearbox breather
An Essential Universal Mount Fittings kit covers the mounting hardware if you're running your own hose, while vehicle-specific kits come with hose length already sorted for that model.
The steps
1. Locate your factory diff breathers
Find the factory breather points before you touch anything. On most utes and 4WDs this is a small brass or plastic fitting on top of the front diff, rear diff, gearbox and transfer case. Some are barely visible under 20 years of mud and grease, so clean the area first.
Common mistake: mistaking a fill plug or drain plug for the breather. The breather is a small vented fitting, not a hex-head plug, and it's usually the highest point on that housing.
2. Choose the right breather kit for your vehicle
Match the kit to your model and the number of points you want relocated. A 2-way kit covers a single diff, a 4-way kit typically covers front and rear diffs plus gearbox and transfer case, and a 6-way kit covers everything on vehicles with more breather points.
Boss Air Suspension stocks vehicle-specific kits for models including the Toyota LandCruiser 75, 79 and 80 Series, Prado 90 Series, Nissan Patrol, Mitsubishi Triton and Challenger, and Mazda BT50, along with universal kits for less common applications. Buy the kit matched to your exact model where one exists — it saves guesswork on fitting sizes.
Common mistake: buying a universal kit when a vehicle-specific one exists. Vehicle-specific kits are pre-cut to the right hose length and use the correct thread pitch for that diff housing.
3. Plan the new breather line routing
Before removing anything, decide where each line will terminate. The target is a mounting point well above your realistic wading depth — inside the engine bay near the airbox, on the chassis rail behind the front bumper, or up near the firewall are common spots.
Route lines away from hot exhaust components, moving parts like tie rods, and anywhere they'll get pinched under full suspension travel. Give yourself extra hose length at full droop and full bump so nothing pulls tight.
4. Remove the factory breather fittings
Unscrew the factory breather with a spanner, working slowly if it's corroded in place. A light tap with a small hammer on the spanner can free a stuck fitting without cracking the diff housing.
Common mistake: forcing a seized breather with excessive torque. Diff housings are cast aluminium or iron and the threaded boss can strip or crack if you lean on it too hard. Penetrating oil and patience beat brute force here.
5. Fit the new breather nipples and check valves
Clean the thread on the diff housing, apply thread sealant if the kit requires it, and hand-tighten the new breather nipple before snugging with a spanner. Don't overtighten — these fittings thread into relatively soft housings.
Most kits include a one-way check valve at this stage, which lets air out but stops water being drawn back in through capillary action. Fit these in the orientation shown in the kit instructions; installing a check valve backwards defeats its purpose entirely.
6. Run and secure the extension hose
Push the hose firmly onto each barbed fitting and secure with the supplied clamp or a cable tie rated for engine bay heat. Run the hose along existing chassis lines or wiring looms where possible, using P-clamps or zip ties every 150-200mm to stop it flapping and chafing.
Common mistake: leaving hose loose near moving suspension components or exhaust heat shields. Heat-damaged or pinched hose is the most common reason a relocated breather fails within the first six months.
7. Mount the breather high point
Secure the open end (or the check valve housing) at your chosen high mounting point, angled downward slightly so any condensation drains rather than pooling. Use the bracket supplied in the kit or a simple P-clamp bolted to an existing chassis point.
8. Test for leaks and correct airflow
Spray a soapy water solution over every fitting and clamp, then check for bubbles that indicate a leak. With the engine off, you should be able to blow gently through the open end of the line and feel resistance ease as air moves through — that confirms the path isn't blocked or kinked.
Drive the vehicle for 10-15 minutes and recheck every fitting once everything has warmed up and vibrated. Metal and rubber fittings settle slightly under heat, and a fitting that looked tight cold can loosen once warm.
Troubleshooting
Hose keeps splitting near the diff. The hose is sitting too close to the exhaust or a heat shield. Reroute it at least 50mm from any hot component and re-secure with a heat-rated clamp.
Air still bubbles out during a water crossing. Check the mounting height again — if the high point is still below your actual wading depth for that crossing, water will still push through under pressure. Move the termination point higher.
Check valve seems to have no effect. It's likely fitted backwards. Pull it off, confirm the airflow direction marked on the valve body, and refit the correct way round.
Diff oil looks milky a few weeks after install. This usually means water got in before the new breather went on, not after. Drain and refill the diff oil once the new breather has been fitted and tested.
Fitting won't seal no matter how tight. Check the thread type before forcing it further. Mixing metric and imperial threads on aftermarket fittings is a common cause of persistent leaks, and overtightening a mismatched thread can strip the housing.
Tools and resources
- Vehicle-specific or universal diff breather kit for your model
- Spanner or socket set (10mm/13mm cover most applications)
- Cable ties, P-clamps and heat-rated hose clamps
- Thread sealant compatible with diff oil
- Soapy water in a spray bottle for the leak test
- Air suspension accessories for a DIY airbag installation covers the broader toolkit most 4WD owners keep on hand for driveway jobs like this one
What to do next
Once the diff breathers are sorted, check your other airlines and fittings while you've got tools out. How to fit air suspension fittings and airlines correctly covers the same push-fit and thread-sealing principles that apply to diff breather hose, load assist airbag lines and onboard air systems alike.
If you're building out a full touring setup for 2026 — load assist kit, onboard air and now relocated breathers — start from the Boss Air Suspension homepage to browse the full range by vehicle.
FAQ
How much does it cost to install diff breathers on a 4WD?
Diff breather kits for most popular 4WDs cost between $45 and $105 in 2026, depending on how many points the kit covers. Fitting takes 30-45 minutes per axle with basic hand tools, so most owners do it themselves without workshop labour costs.
Do I need diff breathers if I never do water crossings?
Relocated diff breathers mainly help vehicles that cross rivers, deep puddles or bog regularly. If your 4WD stays on dry tracks and sealed roads, the factory breather position is usually adequate.
What's the difference between a 2-way and a 4-way diff breather kit?
A 2-way kit relocates one breather point, usually a single diff. A 4-way kit typically covers front diff, rear diff, gearbox and transfer case in one kit, which suits most dual-cab 4WDs used for serious touring.
Can I use a universal diff breather kit instead of a vehicle-specific one?
Universal kits work but require you to measure and cut hose to length yourself. Vehicle-specific kits, where available, come pre-sized for that model's diff and mounting points, which reduces fitting time and error.
How high should a relocated diff breather be mounted?
Mount it above your realistic wading depth for the crossings you actually do, commonly up near the engine bay, firewall or a high chassis point. There's no single legal figure, so base it on the deepest water you expect to cross.
Will a diff breather kit stop water getting into my diff completely?
A correctly fitted and mounted breather kit greatly reduces the risk of water ingress during crossings, but no breather relocation is a guarantee against every scenario, particularly total submersion for extended periods.
Do diff breather kits need a check valve?
A check valve isn't compulsory but adds an extra layer of protection by letting air escape while resisting water being drawn back in. Most quality kits include one for this reason.
How often should I check my diff breather hose and fittings?
Inspect the hose and fittings every service interval or after any serious water crossing, checking for cracking, loose clamps or kinks. Rubber hose exposed to engine bay heat degrades faster than the diff fittings themselves.
One last thing
The factory breather height is set for the average buyer, not for someone crossing rivers with a loaded touring setup and a heavier rear end from a fitted load assist kit. If you've added airbags, a canopy or extra fuel and water capacity, your vehicle sits differently in the water than it did stock — which is exactly the scenario where a relocated breather earns its keep.
