Airbag Suspension GWM Cannon Alpha: 2026 Fitting Guide
Fitting a load assist airbag kit to a GWM Cannon Alpha is a bolt-on job most owners finish in an afternoon, once the correct kit for that specific Cannon Alpha variant is confirmed. This guide covers what you need, the fitting steps, pressure settings and the fixes for the problems that come up most often during installation in 2026.
- Airbag suspension for a GWM Cannon Alpha must be matched to the exact variant before you buy - GVM and rear suspension differ across the range.
- Fitting a load assist kit typically takes 2 to 3 hours with basic hand tools and a jack.
- Bellow pressure is set after fitting, not before - most Boss kits run in the 5 to 40 psi range depending on load.
- Airbag suspension supports the existing rear springs under load; it does not increase the vehicle's legal GVM or towing capacity.
- A cab-mounted digital inflation kit lets you adjust pressure without crawling under the tray every time the load changes.
Why this matters
The GWM Cannon Alpha is a large dual-cab ute, and Australian owners load it up with canopies, camping gear, bull bars and tow balls. All of that weight sits behind the rear axle, so the back end sags under load. A sagging rear end lifts the headlights, reduces ground clearance where you need it most and makes the vehicle feel loose under brakes while towing.
A load assist airbag kit works with the factory rear suspension, not instead of it. Air pressure in the bellows adds support only when you need it, so unloaded ride quality stays close to standard once the bags are deflated. Before ordering anything, check your model against the Boss Air Suspension application guide or call the team directly, because Cannon Alpha variants can differ in GVM and rear suspension type from the earlier Cannon.
Airbag suspension improves stability and load-carrying performance for the Cannon Alpha - it does not increase the vehicle's legal payload, GVM or towing capacity unless a specific approved upgrade states otherwise.
What you'll need
- A vehicle-specific load assist kit confirmed for your exact Cannon Alpha spec
- A trolley jack and axle stands
- A socket and ratchet set (metric)
- A torque wrench
- Cable ties and a marker pen for airline routing
- An airbag fitting kit with fittings, tee pieces and airline if not already bundled with your kit
- A means of inflating the bellows - hand pump, portable inflator or an onboard 12V compressor
- 2 to 3 hours of clear workshop time
Most Boss Air Suspension load assist kits ship with the airbags, brackets, air line and fittings needed for a bolt-on install. Confirm what's included before you buy so you're not short a bracket or a fitting halfway through the job.
The steps
1. Confirm fitment before you touch a spanner
Matching the kit to your Cannon Alpha stops a wasted afternoon. Rear suspension geometry, GVM and tray configuration all affect which brackets and airbag size are correct. If you're not certain, hold off and confirm with Boss Air Suspension's application guide first - fitting the wrong kit can mean brackets that don't line up with the chassis mounting points.
Common mistake: assuming a kit built for an earlier Cannon or a related platform will fit an Alpha variant without checking. Confirm in writing before you order.
2. Prep the vehicle
Park on level, flat ground and chock the front wheels. Raise the rear of the ute on a trolley jack and support it on axle stands at the manufacturer's rated jacking points. Working on a sagging or unsupported rear end makes bracket alignment harder and less accurate.
Expected outcome: the rear axle sits at a comfortable working height with both wheels off the ground evenly.
3. Locate the mounting points
Identify the chassis and axle mounting locations specified in your kit's instructions. On leaf-spring and coil-spring rear ends, this usually means brackets bolt to existing chassis holes or clamp around the axle housing.
Common mistake: rushing this step and drilling before confirming hole spacing against the bracket template supplied with the kit.
4. Fit the upper and lower brackets
Bolt the upper bracket to the chassis and the lower bracket to the axle housing, following the torque specs in your kit's instructions. Snug fasteners by hand first, then torque them once both brackets sit square.
Why it matters: a bracket fitted slightly out of square puts the airbag under sideways load, which shortens its service life.

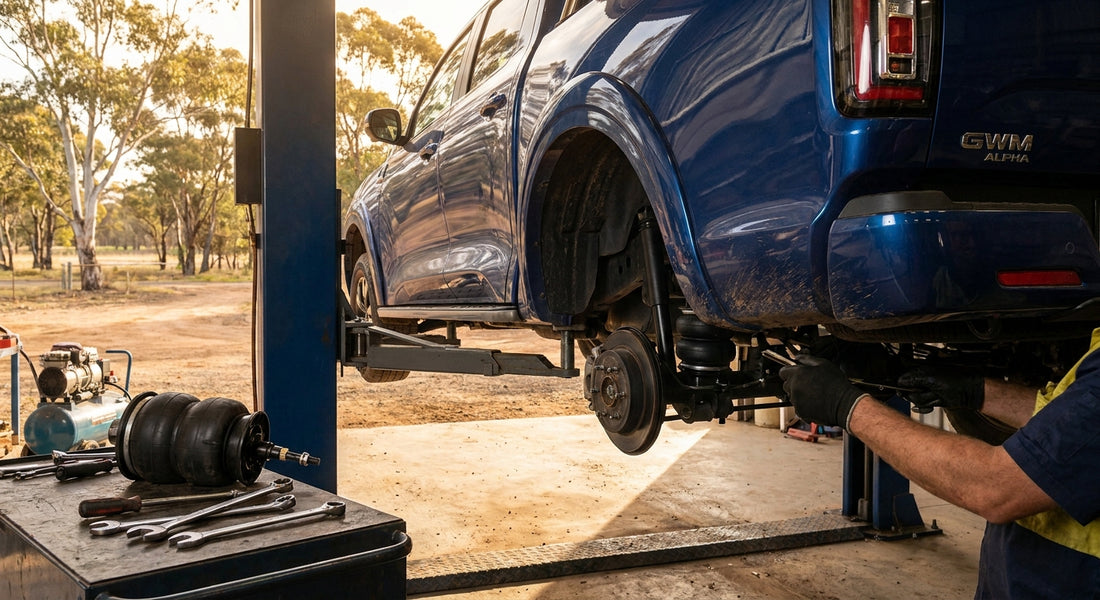

5. Install the airbag bellows
Seat each airbag between the upper and lower brackets, threaded stud through the mounting plate, then tighten evenly. Check the bellow sits centred with no contact against the chassis, brake lines or exhaust.
Expected outcome: both airbags sit level and square, with clearance from moving suspension components at full compression and full droop.
6. Route and connect the air lines
Run the airline from each bellow forward to your chosen control point, away from heat sources and moving parts. Secure it every 200-300mm with cable ties, leaving enough slack for suspension travel.
Common mistake: pulling the airline too tight, which strains a fitting the first time the axle drops on rough ground.
7. Fit the inflation control point
Decide between a simple valve-and-gauge setup or a cab-mounted controller such as the digital airbag inflation kit, which lets you read and adjust pressure from the driver's seat. Mount the gauge or controller somewhere visible and accessible while driving.
Expected outcome: you can check and adjust bellow pressure without getting under the vehicle.
8. Set pressure and test
Start with the minimum recommended pressure specified for your kit, then add pressure to suit the load you're carrying - most Boss kits operate in the 5 to 40 psi range. Drive a short test loop, check for leaks with a soapy water spray on every fitting, and recheck pressure once the vehicle has settled.
Common mistake: running high pressure all the time. Deflate the bags close to empty when the tray is unloaded to keep the unloaded ride comfortable.
Troubleshooting
- Ride height uneven side to side: check both bellows are at equal pressure and both brackets are torqued to the same spec.
- Slow air leak at a fitting: back the fitting off, check the thread for damage, reseal and retighten, then retest with soapy water.
- Bag loses pressure overnight: inspect the airline for a pinch point or kink, and check the bellow itself for surface damage.
- Brackets won't line up with mounting points: stop and re-check fitment - this usually points to the wrong kit for your Cannon Alpha variant.
- No reading on the gauge: check the airline between the bellow and gauge isn't crimped, and confirm the isolation valve is open.
- Harsh ride when unloaded: deflate the bellows down close to their minimum pressure when you're not towing or carrying a load.
Tools and resources
- Trolley jack, axle stands, socket set, torque wrench
- Airbag fitting kit for extra fittings, tee pieces and airline
- A 12V air compressor if you want onboard inflation rather than a hand pump
- A cab-mounted digital gauge or controller for on-the-move pressure checks
- Soapy water spray bottle for leak testing
Some load assist kits for the Cannon platform have already been listed by Boss Air Suspension, including a kit built for the Great Wall Cannon range shown below - confirm against your exact Cannon Alpha spec before ordering.
What to do next
If you want to see the same bolt-on process worked through on another popular dual-cab, the write-up on fitting a load assist kit to a VW Amarok covers the same bracket, airline and pressure-setting sequence step by step.
FAQ
What is airbag suspension for a GWM Cannon Alpha?
Airbag suspension for a GWM Cannon Alpha is a load assist kit that adds air-filled bellows alongside the factory rear suspension. It supports the rear end under load, reducing sag when towing or carrying weight, without replacing the existing springs.
Does airbag suspension increase towing capacity on a Cannon Alpha?
No, airbag suspension does not increase the vehicle's legal payload, GVM or towing capacity. It improves stability and ride height under the load your Cannon Alpha is already rated to carry.
How long does it take to fit a load assist kit?
Most load assist kits take 2 to 3 hours to fit with basic hand tools and a jack. Time varies depending on access to mounting points and whether you're also fitting a cab-mounted controller.
What air pressure should I run in the bellows?
Most Boss Air Suspension kits run between 5 and 40 psi depending on the load carried. Start at the minimum recommended pressure and add air to suit heavier loads, then deflate again once the load comes off.
Can I fit airbag suspension myself or do I need a workshop?
Most owners with basic mechanical skills and a jack can fit a load assist kit themselves in an afternoon. If you're unsure about bracket alignment or airline routing, a workshop familiar with air suspension can complete the job quickly.
Will airbag suspension affect the Cannon Alpha's ride when unloaded?
Ride quality stays close to standard when the bellows are deflated close to their minimum pressure. Running high pressure with no load fitted will make the ride firmer than necessary.
How much does an airbag suspension kit cost for a Cannon Alpha?
Pricing varies by kit and inclusions, so check current pricing against the confirmed fitment for your Cannon Alpha variant before ordering. Vehicle-specific kits are priced as a complete package with airbags, brackets and fittings.
Do I need an onboard compressor to run airbag suspension?
An onboard compressor is not essential but makes adjusting pressure faster than a hand pump. A 12V compressor paired with a cab-mounted gauge lets you change pressure on the move as the load changes.
One last thing
The step owners skip most often isn't the fitting - it's deflating the bags again once the load comes off. Leaving bellows pumped up for a solo commute after a loaded touring trip is the single fastest way to make a Cannon Alpha ride harsher than it needs to be, and it's a five-second fix at the valve.
