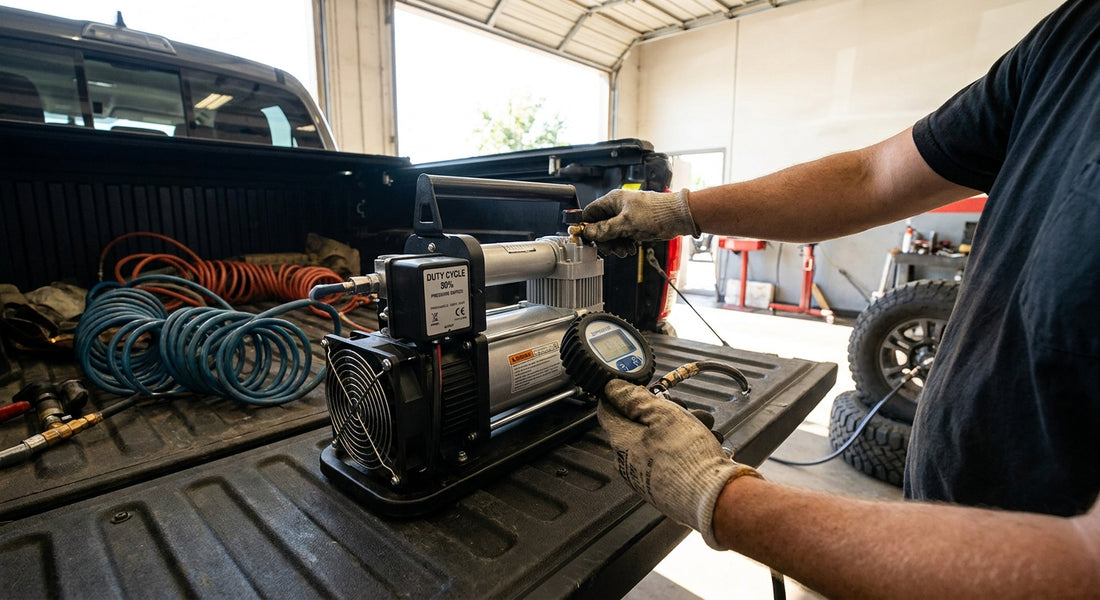

Air Compressor Duty Cycle: How to Choose It Right (2026)
Duty cycle is the number that tells you how hard an air compressor can actually work before it needs to stop and cool down, and getting it wrong means a compressor that overheats mid-inflation or a unit that's overkill for topping up tyres. This guide breaks down how to read a duty cycle rating and match it to onboard air jobs like tyre inflation, air lockers and load assist airbag suspension.
- Air compressor duty cycle sets how many minutes per hour a unit can run without overheating, not how long it runs in one go.
- A 20% duty cycle compressor gives roughly 12 minutes of run time per hour before it needs a rest.
- Tyre inflation and quick airbag top-ups suit lower duty cycle units like the PX03; air lockers and repeated cycling suit higher duty units like the PX07.
- Pairing a compressor with an aluminium air tank reduces run time and protects the duty cycle rating.
- Undersized wiring is the most common reason a compressor overheats before it reaches its rated duty cycle.
Why this matters
A compressor pushed past its duty cycle doesn't just get hot, it trips a thermal cutout or shortens the life of the motor. That's a real problem if you're airing up after a beach run or adjusting load assist airbags roadside with a trailer hooked up.
Duty cycle also decides how much onboard air gear you actually need. Some setups get by with a compact 12V compressor and no tank. Others, especially fleet utes running air lockers daily, need a compressor built for near-continuous work plus an aluminium air tank to buffer demand.
“If your compressor is rated at a 20% duty cycle, that's 12 minutes of running in every hour, not 20 minutes flat out.”
What you'll need
- The compressor's spec sheet or duty cycle rating (usually printed as a percentage at a stated PSI)
- A multimeter to check voltage at the compressor terminals under load
- A stopwatch or phone timer for real-world run testing
- Correctly rated wiring and a fuse matched to the compressor's amp draw
- An aluminium air tank if your setup needs buffered air rather than direct-line inflation, such as the PX03 compressor and fitting kit
- Basic hand tools for mounting and wiring
The steps
1. Define the job before you look at any spec sheet
Duty cycle only matters against a real task. Airing tyres up from 18 PSI to 38 PSI after a beach trip is a short, infrequent job. Running an air locker several times an hour on a tricky track, or cycling load assist airbags repeatedly while adjusting trailer weight distribution, is a sustained job.
Write down what you're actually using onboard air for before comparing compressors. Most overheating complaints trace back to a compressor bought for tyre top-ups being used for a job it was never rated to handle.
Common mistake: buying the cheapest 12V compressor because "it's only for tyres," then using it to run pneumatic tools or an air locker system that demands far more continuous airflow.
2. Read the duty cycle rating correctly
Duty cycle is expressed as a percentage of a fixed time period, almost always one hour. A compressor rated at 20% duty cycle at a given PSI is built to run for around 12 minutes, then rest for 48 minutes, in every 60-minute period.
A compressor rated at 100% duty cycle at a given pressure can, in theory, run continuously at that pressure without a mandatory rest period, though ambient temperature still affects real-world performance in 2026's Australian summer conditions.
Expected outcome: you can look at any compressor's duty cycle rating and translate it into actual minutes of usable run time per hour, instead of guessing.
3. Match duty cycle to your onboard air layout
A compressor working alone, with no air tank, hits its duty cycle limit faster because every inflation task pulls directly from the motor. Adding an aluminium air tank lets the compressor fill a reservoir at its own pace, then draws from stored air for the actual task, cutting real-world run time significantly.
For setups built around load assist airbags and occasional tyre inflation, a tank in the 1 to 3 gallon range is common. For fleet vehicles or air locker use, larger tanks reduce how often the compressor needs to cycle at all.
Why it matters: a smaller-duty-cycle compressor paired with the right tank can outperform a higher-duty compressor running with no buffer.
4. Size the compressor for peak demand, not the average day
Don't size a compressor around "most days." Size it around the hardest job it will ever be asked to do. If there's any chance the vehicle will need repeated air locker cycling, faster tyre reinflation for a group, or frequent airbag pressure adjustments while towing, step up to a compressor with a higher duty cycle rating such as the PX07 3/4HP compressor.
Common mistake: sizing to the vehicle's average trip instead of the one trip a year that actually stresses the system.
5. Check voltage drop before you blame the compressor
A compressor that underperforms its duty cycle rating is often suffering from voltage drop, not a faulty unit. Long, undersized wiring runs from the battery to the compressor cause the motor to work harder and run hotter than the spec sheet assumes.
Measure voltage at the compressor terminals while it's running. A drop of more than half a volt from battery voltage on a 12V system points to wiring that needs upsizing.
Expected outcome: correct wiring gets you closer to the rated duty cycle instead of a compressor that trips out early every time.
6. Add pressure control to protect the duty cycle
A pressure switch or digital controller stops the compressor running longer than it needs to by cutting power once target pressure is reached. Without one, a compressor can keep running well past the point the tank or airbags are already at pressure, chewing into the duty cycle for no reason.
This is a cheap way to extend real-world compressor life without changing the compressor itself.
7. Test real-world run time before you rely on the setup
Spec sheet duty cycle figures are measured under controlled conditions. Run your own test: time how long the compressor actually takes to complete your typical task, and how hot the housing gets afterwards.
If the compressor is noticeably hot to the touch or the motor sound changes pitch before the job is finished, you're pushing past what the duty cycle rating supports in real Australian heat.
Common mistake: trusting lab-rated duty cycle numbers without ever timing the compressor doing your actual job.
Troubleshooting
Compressor cuts out well before the rated duty cycle time. Check voltage at the terminals first. A drop of more than 0.5V under load usually means the wiring gauge is too light for the run length, and the motor is working harder than the duty cycle rating assumes.
Inflation takes far longer than the spec sheet suggests. This is usually low ambient airflow around the compressor housing, a partially blocked filter, or a compressor sized for tyre inflation being asked to fill a larger tank from empty.
Compressor won't restart after a thermal cutout. Let it cool for the full rest period implied by its duty cycle (a 20% duty cycle unit needs roughly 48 minutes off after a full 12-minute run). Restarting too early repeatedly stresses the motor.
Pressure switch cycles the compressor on and off constantly. This points to a leak in the air line or fitting downstream, not a faulty switch. Soap-test every fitting before assuming the compressor is undersized.
Compressor blows a fuse under load. The fuse is protecting the wiring, not the compressor. Confirm the fuse rating matches the compressor's stated amp draw before swapping to a larger one.
Compressor housing gets uncomfortably hot within minutes. Check for restricted airflow around the mounting position. Compressors mounted in tight, enclosed spaces run hotter than the same unit mounted with clear airflow, even at the same duty cycle rating.
Tools and resources
- PX03 compressor and fitting kit for lighter tyre inflation and airbag top-up duty
- PX07 3/4HP compressor for higher-demand onboard air setups
- How to wire a 12V air compressor for onboard air for correct wiring gauge and fusing
- A digital multimeter for voltage drop testing
- A stopwatch for real-world duty cycle testing under your own conditions
What to do next
Once the compressor and duty cycle are matched to the job, the next weak point in most onboard air setups is the pressure switch controlling when the compressor cycles. Check how to size and wire one correctly in the guide on choosing a pressure switch for onboard air setups.
FAQ
What is a good air compressor duty cycle for onboard air in a 4WD?
A 20-30% duty cycle suits occasional tyre inflation and airbag top-ups for most 4WD owners in 2026. Vehicles running air lockers or frequent tyre pressure changes on the track benefit from a higher duty cycle compressor.
Is a 100% duty cycle compressor overkill for tyre inflation?
For simple tyre top-ups, yes, a 100% duty cycle compressor is more than most owners need. It becomes worthwhile if the same compressor also runs an air locker or pneumatic tools regularly.
Does an air tank change the duty cycle needed?
Yes, an aluminium air tank stores compressed air so the compressor runs less overall, effectively reducing the strain on its duty cycle. A 9 litre or 5 gallon tank noticeably cuts run time compared to inflating direct from the compressor.
Why does my compressor overheat before reaching its rated duty cycle?
Voltage drop from undersized wiring is the most common cause. Measure voltage at the compressor terminals under load; a drop over 0.5V on a 12V system means the wiring needs to be upsized.
How long should I let a compressor cool down after a thermal cutout?
Follow the rest period implied by the duty cycle rating, typically around 45-50 minutes after a 12-minute run on a 20% duty cycle unit. Restarting sooner puts unnecessary strain on the motor.
Do load assist airbags need a high duty cycle compressor?
No, adjusting load assist airbag pressure is a short, infrequent task that suits a lower duty cycle compressor like the PX03. Higher duty cycle units are more relevant for air lockers or tools run continuously.
What amp draw should I expect from a 12V onboard air compressor?
Amp draw varies by compressor size and should always be confirmed on the specific unit's spec sheet before wiring. Undersizing the fuse or wiring to the actual draw is the fastest way to cause premature thermal cutouts.
One last thing
The duty cycle rating on the box is measured under lab conditions, not a 40-degree Australian summer afternoon with the bonnet closed and the compressor tucked against the firewall. Mount it somewhere with clear airflow and you'll get closer to the rated figure than most owners expect. Boss Air Suspension builds onboard air components for exactly these conditions, and picking the right compressor and tank combination for 2026 driving means fewer surprises when you actually need the air.
